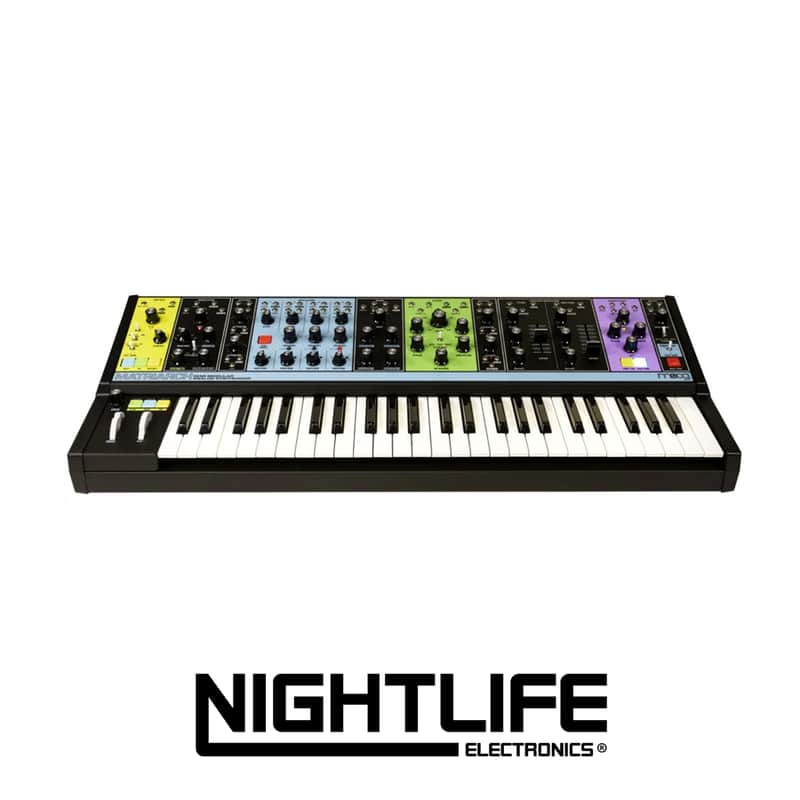

Matriarch is an analog synthesizer with an emphasis on imagination. The pinnacle of Moog’s semi-modular family of synthesizers, Matriarch’s patchable architecture and classic Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound.

Easily create rich harmonic shapes with up to 4 notes of paraphony that can be sequenced, shifted, and stored with Matriarch’s intuitive 256 step sequencer, or stack the analog VCOs to play on a massive 4 oscillator mono synth.

With a deep assortment of synthesis modules based on Bob Moog’s original circuit designs, Matriarch’s 100% analog signal path spans a dynamic sonic vocabulary – from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails . Coupling the power of vintage-designed stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multi-dimensional sound that empowers the sonic exploration of space and time .

Though Matriarch’s semi-modular design requires absolutely no patching, 90 modular patchpoints are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard into a fully modular analog synthesizer at a moment’s notice.

In addition to its standalone function, Matriarch is also an ideal processor of external sound sources and a powerful keyboard front-end for expanding a DFAM, Mother-32, Grandmother, or Eurorack modular system.

Features:

• Mono, duo, and 4-note paraphonic playability
• Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
• 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. (Can be decoupled from Matriarch to independently sequence external gear)
• 90 modular patch points for endless exploration
• Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch
• 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator
• Full-range analog LFO with 6 selectable waveshapes
• Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available
• Dual analog ADSR envelopes
• Dual analog VCAs
• 3x bipolar voltage controlled attenuators with ring mod capability
• 2x4 parallel wired unbuffered mults
• Additional simple analog LFO useful for adding modulation to delay, filters and VCAs
• 1/4“ external audio input for processing guitars, drum machines, and more through
• MIDI-I/O-- 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
• DIMENSIONS-- 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
• POWER-- Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz with screw-on barrel connector.
