THE PEDAL ORPHANAGE: An Audio Adoption Agency

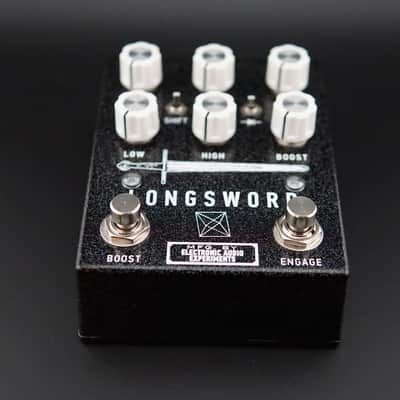

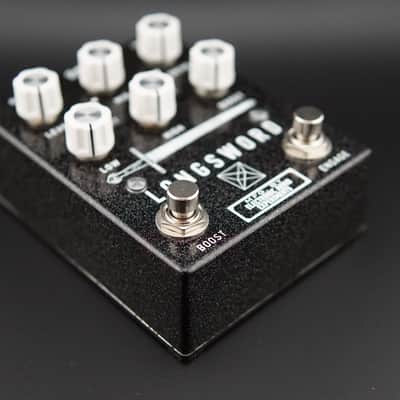

Pedal: Electronic Audio Experiments Longsword v4

Box: Yes

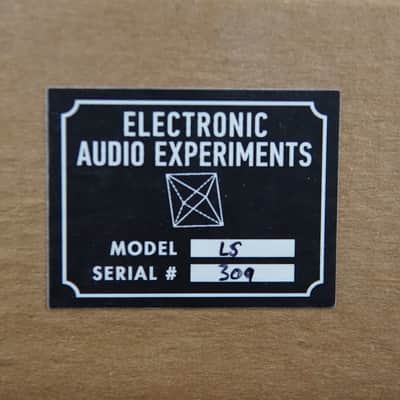

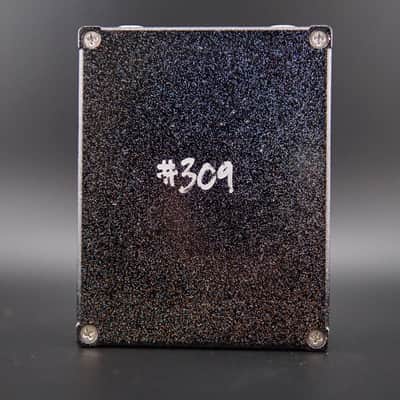

Uniqueness: S/N: #309

Functions Flawlessly and Perfectly Maintained

From EAE:
The Electronic Audio Experiments Longsword is yet another contender in the endless void of op-amp based drive pedals—familiar but with some novel twists. Cascaded gain stages allow for the full range from clean boost to massive distortion, all without sacrificing tonal flexibility. The equalizer combines bass and treble shelving filters with an active, frequency-selectable midrange boost/cut control. This lets the user sculpt a diverse array of tones and carve out a niche in even the most dense of mixes. The Longsword has a broad frequency response which makes it work equally well with guitar, baritone, and bass.

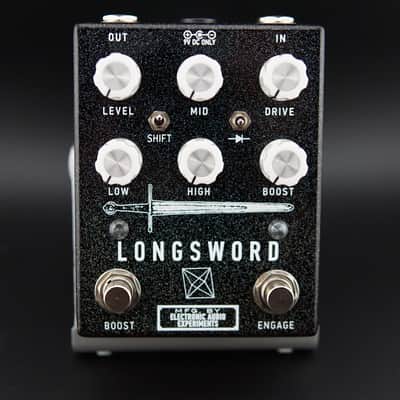

Controls

• Level: output volume
• Drive: go from light grit to heavy overdrive
• Low/High: James/Baxandall tone stack (shelving filters)
• Mid: active midrange boost/cut
• Shift: selects frequency controlled by Mid pot
• Diode: selects between clipping diodes, to alter dynamics and headroom
• Up: MOSFET clipping, medium compression
• Center: no diodes, minimal compression
• Down: Silicon diode clipping, maximum compression
• Boost (Footswitch): engages a front end mid boost
• Boost (Knob): adds up to 20dB of gain when the Boost is engaged

Electrical Specifications

• Bypass: Relay switching with true bypass
• Input impedance @ 1 Khz: 500kΩ
• Output impedance @ 1 Khz: 1kΩ
• Power: 9V DC, 2.1 mm center negative barrel. The current draw is 75 mA.

We recommend a regulated, isolated power supply rated for 100 mA minimum. The PSU input is protected against reverse polarity and over-voltage up to 24V. Our pedals do not accept batteries.

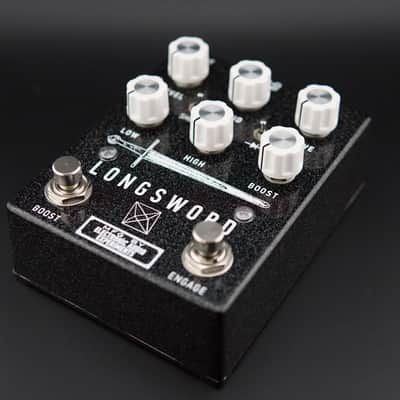

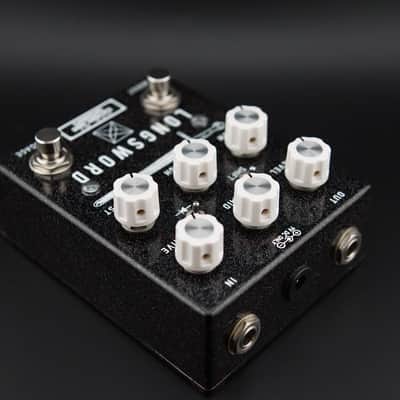

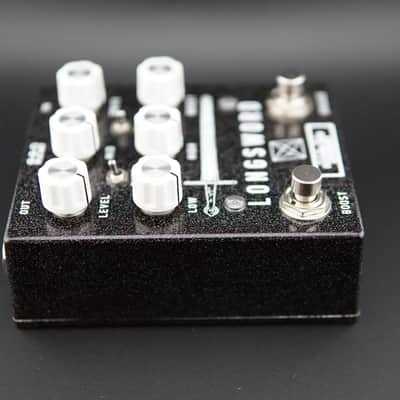

*All pictures are of the actual pedal and it's included items. Pedal Stand not included*

*Packed with Care and Shipped Quick - Often Same Day if purchased before 12PM EST*
