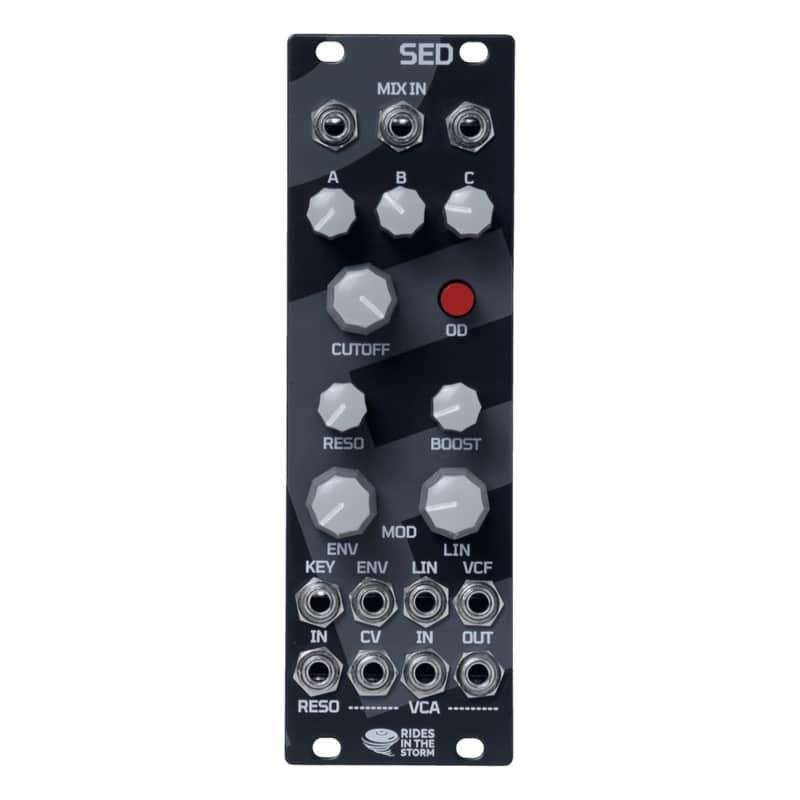

Rides In The Storm SED Eurorack Filter & VCA Module

Manufacturer's description

Single ended discrete VCF and VCA plus 3 Channel Mixer
Three Channel Mixer
Overdrive Button and Resonance Boost level
Discrete VCA with low noise and low distortion
Jumper at the back to switch from 5V, 7.5V and 10V CV input for VCA
Inputs: A, B and C Audio IN
KEY IN (1V/Oct) for VCF Cutoff
ADSR IN for Cutoff
Linear FM IN for Cutoff
CV In for Resonance and CV IN for VCA.
Audio IN for VCA (normalized, no Input VCF goes to VCA, Input switched VCA is separately)
VCF Audio OUT
VCA Audio OUT
Screwed metal shaft potentiometer
