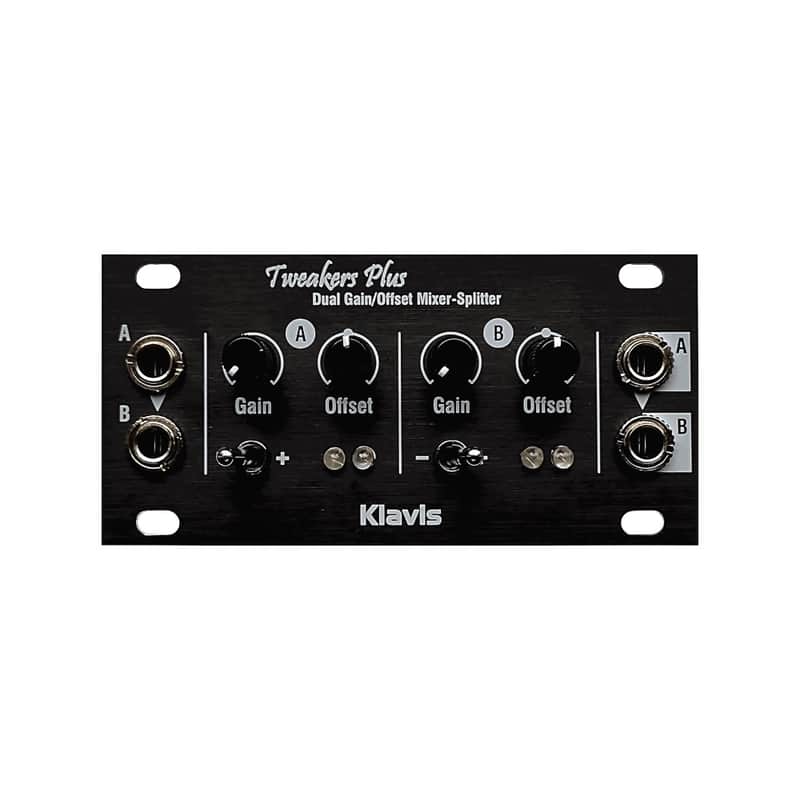

Klavis Tweakers Plus Eurorack Utility 1U Module (Black - 1U)

We say...

A 1U version of Klavis's excellent dual gain/offset/polarity/mute CV processor. Every rack should have one!

Manufacturer's description

The Tweakers Plus is a slim companion module that allows fine tuning your modulations. Two channels offer control over gain and offset. A three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset.

A pair of LEDs tell the amplitude and polarity of the output signal; with audio signals, both LEDs light up together! Normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets.
Normalizing of the outputs offers an extra mixer, summing the two channels, very handy as an audio mixer too.

The Tweakers Plus is a perfect companion for modules whose modulation inputs lack such amenities.
Activating predefined settings at the flick of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.

Features

• Two independent channels also useable jointly as a mixer or splitter
• In each channel:
  • Input and output jack
  • Gain pot with up to 2.1 amplification
  • Bipolar offset pot
  • 3-position switch: Inverted polarity / Channel off / Normal polarity
  • LED pair to indicate positive/negative signal level
  • Offset setting is independent of the polarity switch
• Normalized input A can distribute the signal in both channels
• Normalized outputs can mix the two channels on out B
• Useable for audio
• 1U module
• Black bath-anodized brushed aluminium, 2mm thick
