Hello this amazing guitar is the latest build I've done in collaboration with a professional guitar luthier friend of mine. This guitar Looks, plays & sounds awesome. Perfectly setup with great action..All top of the line materials were used throughout. I wish i could keep it but unexpected bills came up... It was completed a month ago. Over $1300 invested into this bad boy..
Specs are below:

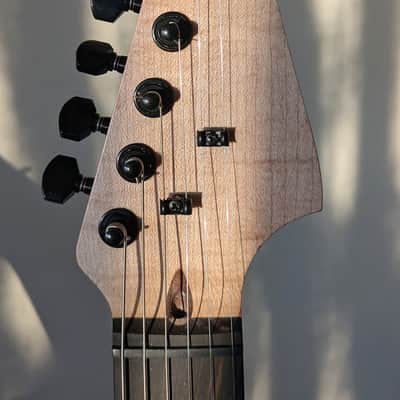

NECK
- Warmoth - Jazzmaster® Replacement Neck
- Construction - “Vintage/Modern”
- Shaft Wood - Quartersawn Maple
- Fretboard Wood - Ebony
- Nut Width - 1-3/4" (44mm) - Wide
- Right / Left Handed -Right-Handed
- Neck Back Profile - Standard Thin
- Fretboard Radius - 10" - 16" Compound
- Number of Frets - 21
- Fret Size & Material - SS6150 - Wide & Tall (Stainless)
- Tuner Hole Size - Gotoh/Grover (13/32" - 11/32")
- Inlay Shape - Standard Dots
- Inlay Material - Cream
- Side Dots - White Side Dots
- String Nut - GraphTech Black TUSQ XL
- Mounting Holes - Standard 4-Bolt
- Neck Heel Shape - Strat® Shape
- Finish - 7 coats Tru Oil Satin (sanded to 3000 grit on the back of the neck)

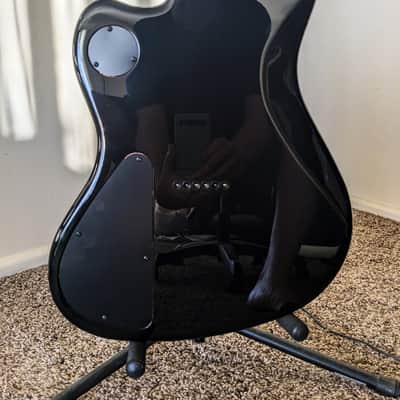

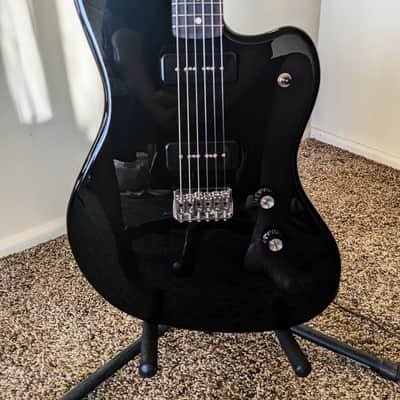

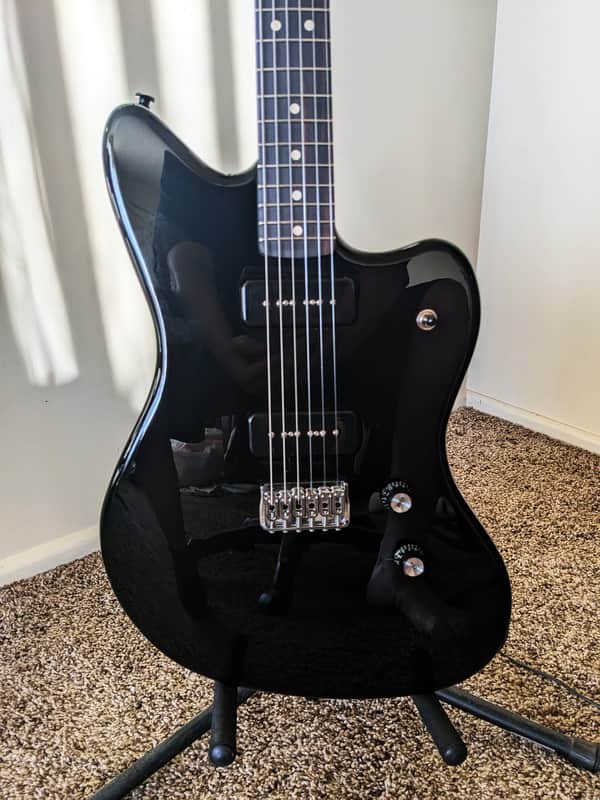

BODY
Jazzmaster® Replacement Guitar Body - Solid Construction - Core Wood (Alder)Right-Handed - Rear Routed Control/s Cavity - P90 Neck Pickup Rout - P90 Bridge Pickup Rout - Controls (Volume 1, Tone 1, Lower Horn Toggle Hole) - Jack Route (3/4" (19mm) Side Jack Hole) - Bridge Route (Hipshot Hardtail Bridge Mounting Holes) - Standard 4-Bolt Neck Pocket - Neck Pocket Shape (Strat®) - Body Contours (Forearm Contour, Tummy Cut) - Finish - Solid Black Poly
HARDWARE
- Bridge - Hipshot 6 String Fixed Bridge
- Pickups - Lollar P-90 Soapbar (underwound) Neck - Lollar P-90 Soapbar Bridge
- Potentiometers - CTS 450 Series A500K Split Audio Tapers 10% Tolerance
- Capacitor - .022uf / 200v 715P Orange Drop Capacitor
- Toggle Switch - Switchcraft 3 Way Toggle Switch w/Genuine Tip, Short Toggle
- Jack - Pure Tone Multi-Contact 1/4 inch Mono Output Jack | Black Nickel | Dual Tension Grounds & Dual Positive Tips for Optimal Signal, Tone & Lowest Possible Noise
- Tuning Machines - Gotoh Schaller-Style Knob Tuning Machines, 6-in-Line, Black
- Strap Posts - D'Addario Accessories Elliptical End Pins
