Happy Nerding HN VCF - Black
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

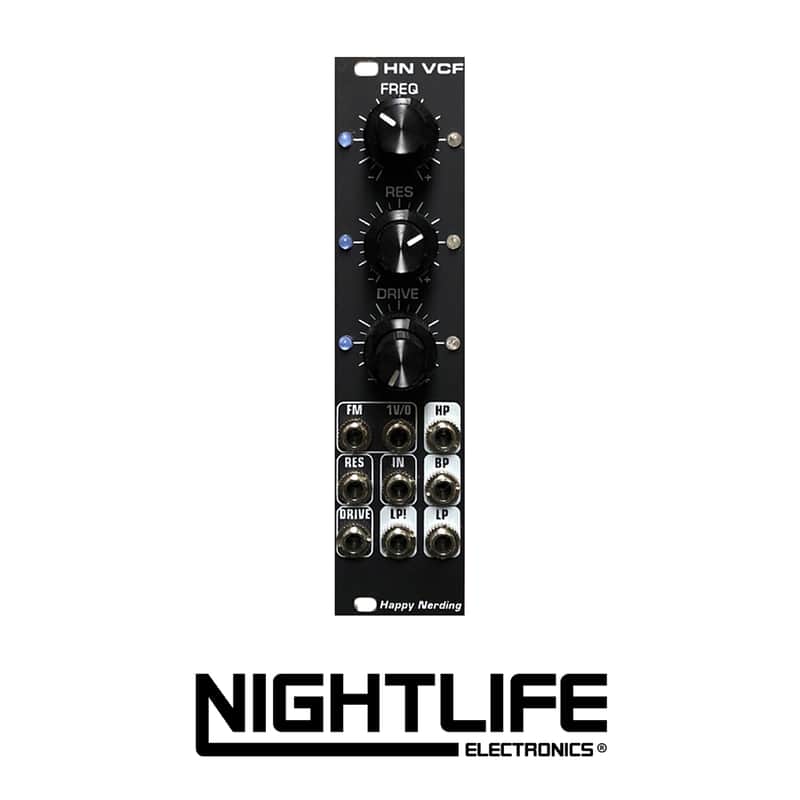

HN VCF is a state variable filter having 12 db Low Pass, 12 dB High Pass, 6 dB Band Pass plus 18 db Low Pass marked as “LP!”, because it has extra drive. All three parameters: “Freq”, “Resonance” and “Drive” have dual knobs with outer knobs controlling bipolar CV amount. These affected CVs are then shown by the relative green/blue leds.
The possibility to have CV over “Resonance” and “Drives” makes it a very capable 6 HP filter.
HN VCF can be used to transform mono sound to pseudo stereo. To do this the user should send “LP” output to one channels and “LP!” to another. With some “Drive” added to the sound it starts to be spread over the stereo field.
- Width: 6HP
- Depth: 35mm
- Power: 55mA @ +12V /65mA @ -12V
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Made In |
|
| Synth Module Function |
|
| Horizontal Pitch |
|
