BOREDBRAIN XCELON XP3 EXPANDER : BRAND NEW : [DETROIT MODULAR]

Modular Mixing Expanded:

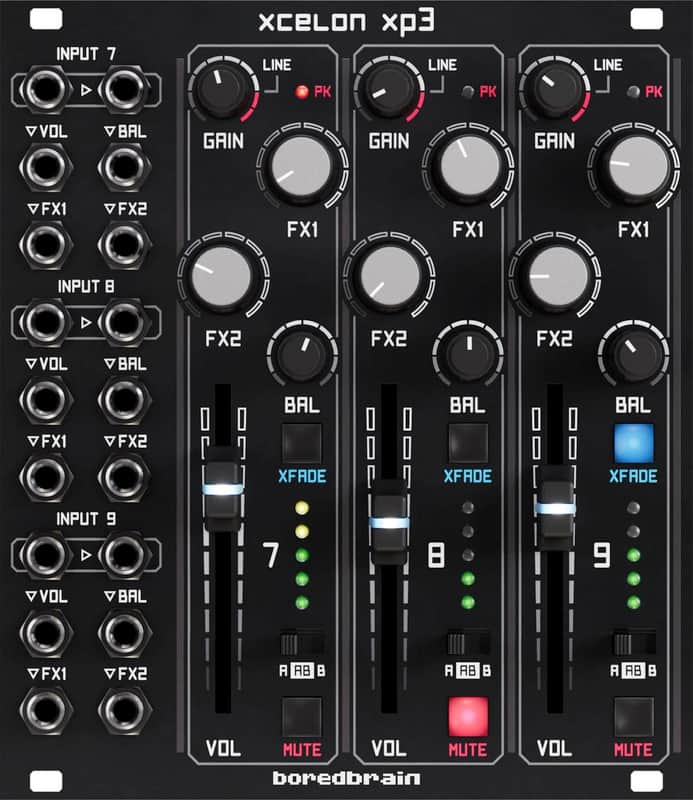

Xcelon XP3 is a three-channel stereo expander for the Xcelon eurorack mixer. The module’s channels are identical to those found on the main mixer. Up to two XP3 can connect to Xcelon, expanding the total number of mixer channels to either nine or twelve.

FEATURES:

Adds three stereo/dual-mono channels to Xcelon mixer (up to two expanders supported)

Two stereo FX sends and two stereo output mix busses selectable per-channel

Variable input gain for both modular and line-level sources

Long-travel volume faders with CV responsive LED indicators

Balance controls with pan law curve and dual-mono crossfade mode

Clickless mutes and VU meters on all channels

Twelve discrete control voltage inputs

Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode

TECHNICAL SPECS:

Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)

CV Inputs: 12 x 3.5 mm jacks

Input Impedance: 100 kΩ

Channel Input Gain: +15 dB

Width: 22 HP

Depth: 1.5 in (38 mm)

Weight: 11 oz (312 g)

Power: +12 V 190 mA (250 max), -12 V 150 mA
