A Modular Mixing Powerhouse:

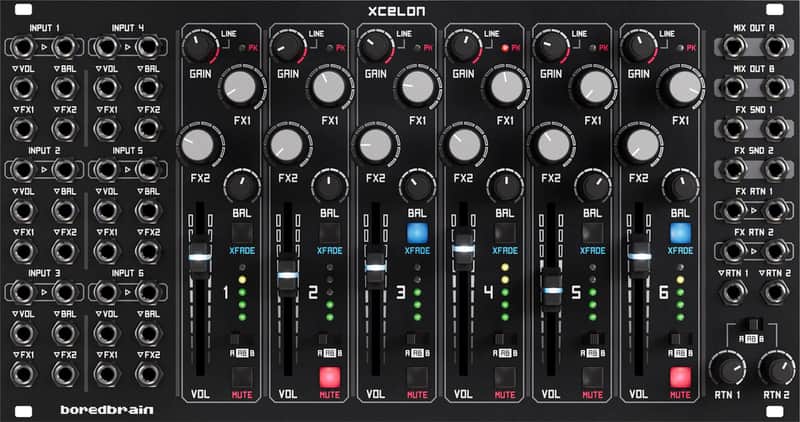

Xcelon is an all-analog six-channel stereo audio mixer for eurorack modular systems. With an interface designed for immediate hands-on control and visual feedback, plus extensive CV and expandability, the module is a powerful mixing tool for both performance and production.

FEATURES:

Six stereo/dual-mono channels with low-noise analog circuitry

Two stereo FX sends and two dedicated FX returns

Two stereo output mix busses selectable per-channel

Variable input gain for both modular and line-level sources

Long-travel volume faders with CV responsive LED indicators

Balance controls with pan law curve and dual-mono crossfade mode

Clickless mutes and VU meters on all channels

Twenty-six discrete control voltage inputs

Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode

Expansion ports for channel expanders, direct outputs, and more

TECHNICAL SPECS:

Audio Inputs: 16 x 3.5 mm jacks (8 stereo pairs)

Audio Outputs: 8 x 3.5 mm jacks (4 stereo pairs)

CV Inputs: 26 x 3.5 mm jacks

Input Impedance: 100 kΩ

Channel Input Gain: +15 dB

Width: 48 HP

Depth: 1.5 in (38 mm)

Weight: 24 oz (680 g)

Power: +12 V 395 mA (470 max), -12 V 320 mA
