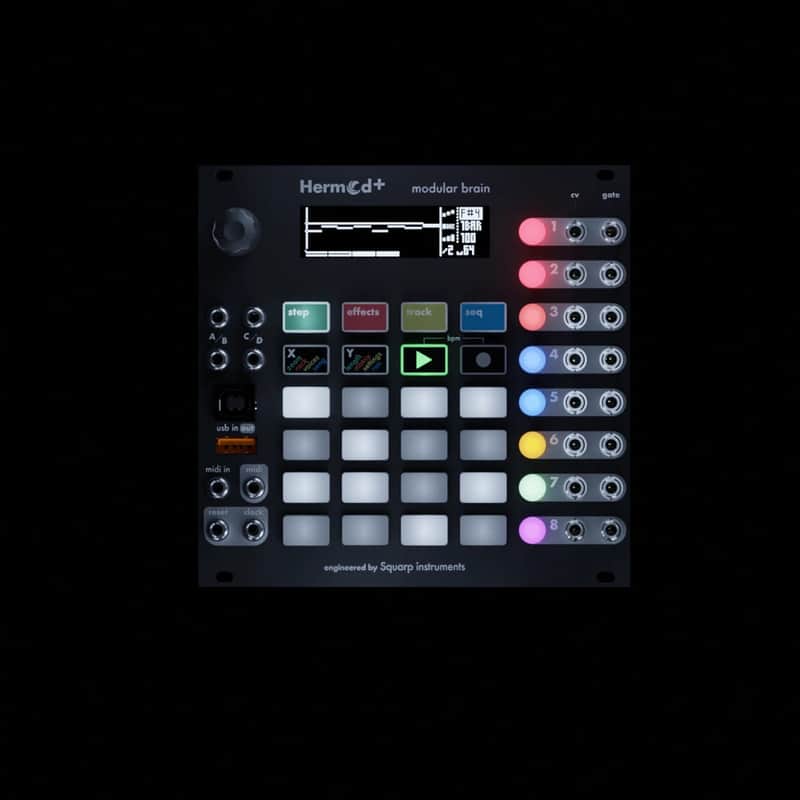

SQUARP HERMOD + : BRAND NEW : [DETROIT MODULAR]

Hermod+ adds so much to your system. Based on the established Hermod workflow and keeping the same form factor, Hermod+ offers a lot of new features, and a refined, more playful interface with extended connectivity.

Record CV/Gate, MIDI notes and modulations on 16 polyphonic tracks. Compose melodic variations across 16 patterns per track, and take advantage of the advanced step sequencer and the new effects to gain efficiency and creativity in studio and on stage.
8 CV/Gate and 8 MIDI tracks Hermod+ offers 8 CV/Gate tracks (that can also output midi) and adds 8 dedicated MIDI tracks for your extra gear.
CV inputs Record, edit and loop analog modulations or CV/Gate using the 4 CV inputs, and use them to synchronize Hermod+ to an incoming analog clock.
Record live With an improved resolution of 96ppqn, record and playback your CV/Gate or MIDI performance seamlessly without any noticeable note shifting, for up to 16 bars per pattern.
Polyphonic step composer The revisited piano–roll now allows intuitive polyphonic editing. Edit or program chords, melodies and rhythms using the 16 built–in pads for a quick and playful composition process.
Automation Program or record automated modulations (CV and/or MIDI) for each track, in addition to midi aftertouch, pitchbend and sustain voices.
Dynamic effects Add up to 8 real–time CV/MIDI effects per track. All effects are non–destructive, so they can be edited at any given time to add some variations to a performance.
Advanced ModMatrix Use the modulation matrix to link incoming CV or CC messages to effect parameters. Each modulations can be attenuverted and offsetted.
Playable song mode Build your song structures using up to 16 sequences per project. Play them into a predefined order or launch them manually for improvised performances.
Synchronized project swap Quickly save and recall your projects on the SD card. Project loading can now be done in sync, without interrupting your performance.
Editing made simple.
Fluid workflow with a redesigned Step mode Step mode is where you can edit notes, modulations and gate events. Hermod+ offers quick ways to write melodies and rhythms. Zoom in and out to visualize and edit portions of your track precisely and break free from rigid grid sequencing.

The re–designed piano roll editor makes the vertical and horizontal scrolling easier and faster, while the new "row edit" feature allows for quick chords and drum patterns programming.

Create modulation curves by programming them directly on Hermod+ or by recording incoming signals, and send those curves via CV or MIDI to other parts of your system.
Versatile interface.
Polymorphic layouts for perfect integration Hermod+ can adapt its voice layout to any patching scenario. Depending on your needs, any track can become a modulation output, a monophonic CV/Gate track, a polyphonic MIDI track, ...

For a track of CV/Gate note + velocity + aftertouch, or for a polyphonic CV/Gate track, simply group voices using the desired layout.

Take advantage of the 8 dedicated MIDI tracks, that can record and be programmed independently from the 8 CV/Gate tracks.
Special effects.
Experiment with dynamic effects Up to 8 real–time effects per track with creative parameters and generative features. Hermod+ is the canvas, the paint and the brush of your setup.
Time controller Either Hermod is the follower or the leader, you can rely on its solid timing precision. Receive, compute & send a large variety of MIDI/GATE clocks & sync signals. We also added 2 dedicated gate outputs to generate various clocks and sync signals.
Transpose Play or program notes on the TRSP leader track to transpose other selected tracks of the project.
Generative music Generates patterns on the fly through the pattern generator, in a controlled-randomized way.
Trigger advance Using a Gate input, launch (from a clock, a footswitch, ...) the playing of a defined number of steps.
LFOs As each track can have its own LFO effect (synced or not), you can transform your Hermod into an 8–voice LFO module!

Firmware evolution.
The Hermod+ real–time Operating System has been redesigned from scratch, like its hardware, combining stability with a intuitive user interface to never stop your creative flow. Looking for the latest Hermod+OS for your device? Follow
Specifications Sequencer Tracks : 8 CV/Gate + 8 MIDI Patterns : 16 per track Recording resolution : 96ppqn Track length : 1/16 note to 16 bars Automation per patterns : CC modulation + pitchbend + aftertouch + sustain Projects Amount of projects : unlimited Tempo : 10 to 280 BPM Global transpose track : yes Double project architecture : yes Song chain length : 64 sequences Piano roll Zoom min : /4 (1 step = 1/4 note = 1 beat) Zoom max : X8 (1 step = 1/128 note) Note/gate width : 1/32 (1/512 note) to 8 bars Maximum polyphony per step : 24 Row edit (polyphony editing) : yes Note pitch : C0 to C10 Note velocity : 0 to 127 Synchonization clock speed Max input rate : 1/96 = 24ppqn Max output rate : 1/96 = 24ppqn Input MIDI : TRS type A + USB host + USB device CV : 4x [-5V to +5V] Output MIDI : TRS (type A) + USB host + USB device CV : 8x [-5V to +5V] GATE : 8x [0V / +5V] Dedicated Clock port Dedicated Reset port for transport Power Note : the use of your eurorack +5V rail is configurable with a switch on the back of Hermod+ Consumption (using +5V rail) : -12V 20mA, +12V 20mA, +5V 820mA (add up to +500mA when attaching a controller on USB host) Consumption (not using +5V rail) : -12V 20mA, +12V 400mA (add up to +220mA when attaching a controller on USB host) Hardware Width : 26HP Depth : 20mm Weight : 285gr (0.63lbs) CV inputs resolution : 16-bit CV outputs resolution : 16-bit Display : OLED 58x16mm SD card : microSD high speed (provided) CPU : ARM 480MHz
