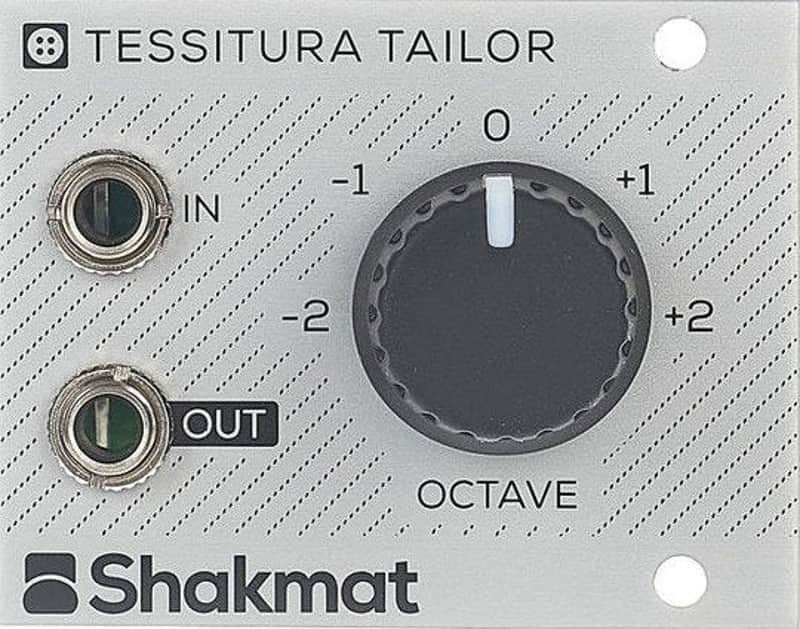

SHAKMAT MODULAR TESSITURA TAILOR 1U OCTAVE SWITCH : BRAND NEW : [DETROIT MODULAR]

Made-to-measure Pitch

The Tessitura Tailor adds or substracts a precise voltage (from -2 to +2 volts) to the signal received at the CV input. This signal is transposed by octaves, depending on the rotary switch’s position. As the CV input is normalised to 0 volt, the module works without any input as an octave switch.

Features

• Switchable CV transposer/generator

• Stepped potentiometer allowing transposition from -2 to +2 octaves

• Precison trimmer at the back of the module for fine-tunning.

• Skiff friendly (25mm deep)

• Intellijel and Pulp Logic format supported

• 1U — 10hp

Dimensions 10 HP 25 mm deep

Module is a 1U tile.

Current Draw 10 mA +12V 10 mA -12V 0 mA 5V
