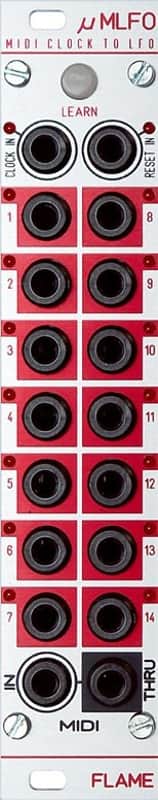

FLAME uMLFO MIDI CLOCK TO LFO : BRAND NEW : [DETROIT MODULAR]

14 LFOs controllable by MIDI or clock

The "µMLFO" module provides 14 synchronizable (or free-running) LFOs with bipolar voltage output (+-5V). It can be operated via MIDI or analog clock. The tempo of the LFOs is determined by the speed of the corresponding clock and the divider settings (rate).

After receiving a MIDI Start command, the LFOs will run to MIDI clock and will then sync their rate accordingly. One of 24 patches can be selected via MIDI. The receive MIDI channel is set with the LEARN button. Up to 12 of your own patches can be loaded per SYSEX dump. These are individual settings for the 14 LFOs. This includes the waveform, rate, sync and phase (shifting the start point of the waveform).

When stopped (i.e. after receiving a MIDI stop command or after switching on), the module can be operated with 16th analog clock.

Dimensions 5 HP 40 mm deep Current Draw 80 mA +12V 50 mA -12V 0 mA 5V
