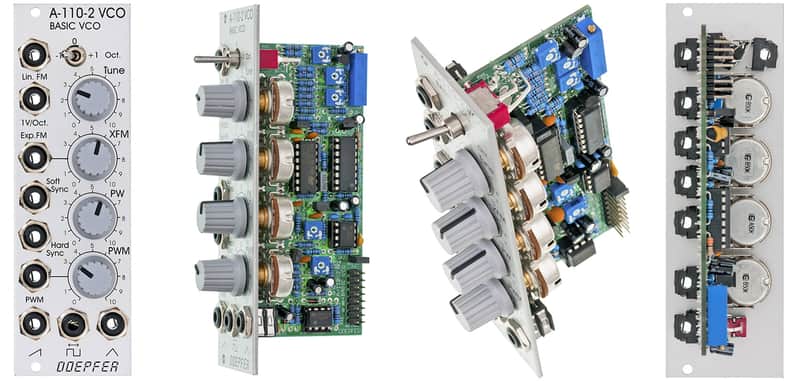

Module A-110-2 is a low-cost voltage-controlled oscillator. It's a slightly reduced version of the standard VCO . Compared to the A-110-1 the A-110-2 has no sine output and the (expensive) octave rotary switch is replaced by a 3-position toggle switch. In return the A-110-2 is equipped with an additional linear FM input and a soft sync input. A jumper is used to select the range of the tune control between about 1/2 octave and about 4 octaves. The width of the module is only 8 HP compared to the 10 HP of the A-110-1.

All other features are essentialy the same as for the .

Explanation of the jumpers and trimming potentiometers:

• JP2: CV connection to A-100 bus
• JP3: range of Tune control (installed = about 4 octaves, not installed = about 1/2 octave)
• JP4: AC/DC coupling of the linear FM input (installed = DC coupling, not installed = AC coupling)
• P5: 1V/Oct scale
• P6: frequency offset
• P7: high-end trim
• P8: adjustment +1 Oct. range switch
• P9: adjustment -1 Oct. range switch
• P10: temperature VCO heater

Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 50 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 150 mA (Aufheizperiode ca. 30 Sekunden / heat up period about 30 seconds), 60 mA (Dauerbetrieb / long-term current)
