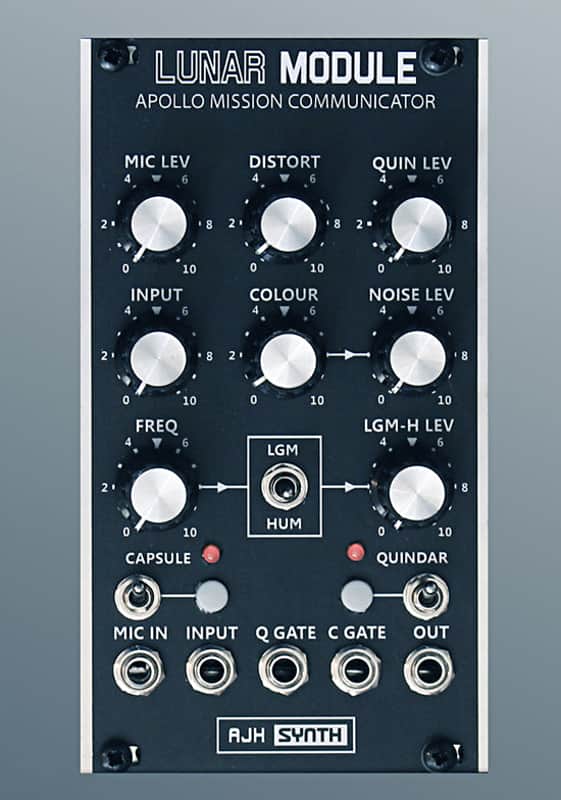

AJH SYNTH LUNAR COMMUNICATOR : BRAND NEW : [DETROIT MODULAR]

Here's a bit of fun for all fans of space missions from the previous century! This module is designed to re-create the ground-to-space and space-to-ground transmissions from the Apollo era.

To be "Mission Control Houston" the Quindar PTT (push to talk) button adds a short 2,525Hz Qindar tone to the start of the transmission, then at the end of the message the PTT button or switch is released and a short 2,475Hz Quindar tone is added to the audio. The bandwidth is slightly reduced in this mode.

For "Astronaut comms" we press the Capsule PTT switch, which allows us to add coloured noise, distortion, bandwidth reduction and either hum or LGM (Little green men space tone) noise to the audio signal. A deep space electret condenser mic is supplied and an be used with the MIC input.

Obviously the Lunar Module can also be used to add noise, hum, distortion, bandwidth reduction and LGM noise tone to any modular level audio too, and if the mic is left attached theremin like sounds can be added too with careful loudspeaker feedback.

Dimensions: 14HP wide, 26mm Deep

• 35 mA +12V
• 10 mA -12V
• 0 mA 5V
• 26 mm deep
