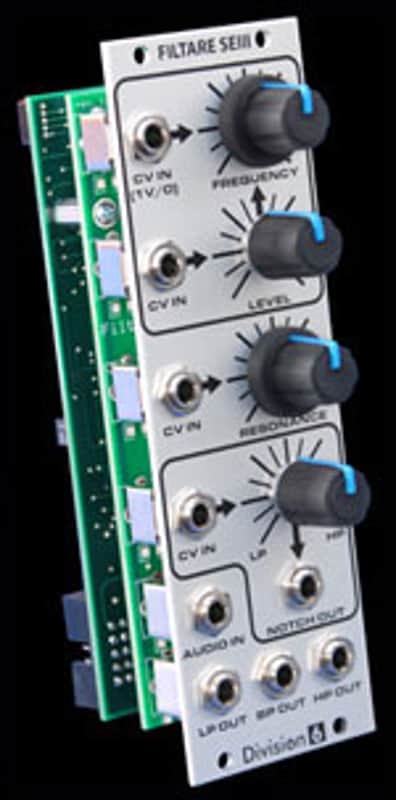

DIVISION6 FILTARE SEIII FILTER : BRAND NEW : [DETROIT MODULAR]

The Filtare SEIII is a multimode, state-variable voltage-controlled filter that gives you low-pass, band-pass and high-pass outputs which are all simultaneously available. It also includes a notch output which allows you to change the balance between low-pass and high-pass. The SEIII uses discrete components but is based on SSM2040 architechture, giving you a very musical sounding filter. There are CV inputs for frequency, resonance and notch balance. The 1 V/O CV input for frequency can be used to have the VCF follow what you're playing on the keyboard or just crank up the resonance and use it to play sine-waves.

Specifications:

• Modes: LP, BP, HP
• All modes are 4-Pole (24dB/Octave)
• Notch: Change balance between LP and HP (total drop with balance at center is 3.4dB)
• Power supply: +/- 12 VDC (reverse-polarity protected!)
• Power draw: 80ma / 80ma
• Width: 8HP
• Depth: 1.38in / 35mm

Inputs:

• CV (for frequency control): 1V/O fixed
• CV (for frequency control): Adjustable
• CV (for resonance)
• CV (for notch balance)
• Audio

Outputs:

• Low-Pass
• Band-Pass
• High-Pass
• Notch

Controls:

• Frequency
• Resonance
• CV Level (frequency)
• Notch Balance
• Volts / Octave Adjust for 1 V/O input (trim pot on back)

Includes:

• Filtare SEIII Module
• Doepfer-style Power Cable
• (4) M3 x 6mm Rack Screws w/ Nylon Washers
