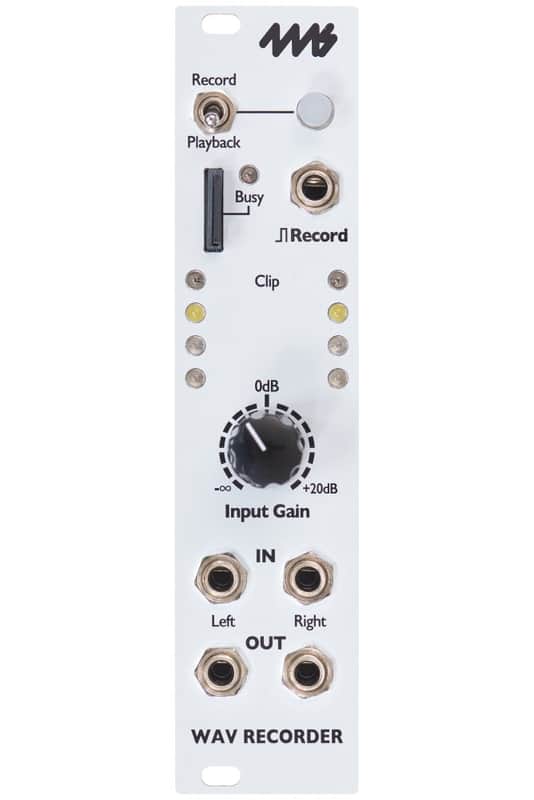

4MS WAV RECORDER : BRAND NEW : [DETROIT MODULAR]
Price$269
Free Shipping
from Royal Oak, MI
Listed:over a month ago
Views:53
Saves:5
Royal Oak, MI, United States
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
- Records high-fidelity, low-noise, stereo WAV files onto microSD Card.
- Up to 96kHz, 24-bit stereo recording.
- Configurable to 96kHz, 48kHz, or 44.1kHz; and 24-bit or 16-bit; and stereo or mono
- Accepts modular signal level or line level.
- Gain knob and LED level meter allows you easily boost or cut any signal, from synths to smart phones, without clipping.
- Audio can be monitored without recording, so the WAV RECORDER can also be used as a pre-amp for boosting line-level signals to modular level.
- Playback previous recordings or standard WAV files on the microSD Card
- Playback and Record activated by button press, or a trigger jack
- Recording time and number of files are limited only by available space on card: Typical cards can hold hundreds of hours of samples.
- Continuous Recording feature automatically breaks long recordings (>6 hours, typically) into multiple 4GB files. With a large SD Card (128GB), you can literally record continuously for 2 weeks without stopping!
- Connects to the LISTEN modules for recording directly from the main output.
- 24-bit 96kHz Codec (DAC and ADC)
- Includes 16GB microSD card
- 6 HP Eurorack format module
- 10-pin Eurorack power header
- 0.98" (25mm) maximum depth with power cable
- Power consumption:
- +12V rail: 112mA
- -12V rail: 12mA
- +5V rail: not used
- Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
- Audio Inputs
- 22Vpp maximum
- Audio Signal
- Signal-to-Noise Ratio (SNR) of WAV file:
(Measurements taken from recordings made in typical Eurorack case powered by Row Power 40)- -91.7dB @ 16-bit, 44.1kHz
- -88.9dB @ 24-bit, 96kHz
- Playback Frequency Response (File : Output jacks)
20Hz - 20kHz: +/-0.1dB maximum
- Signal-to-Noise Ratio (SNR) of WAV file:
- Trigger input:
- Acceptable trigger voltage range: +2V to +12V
