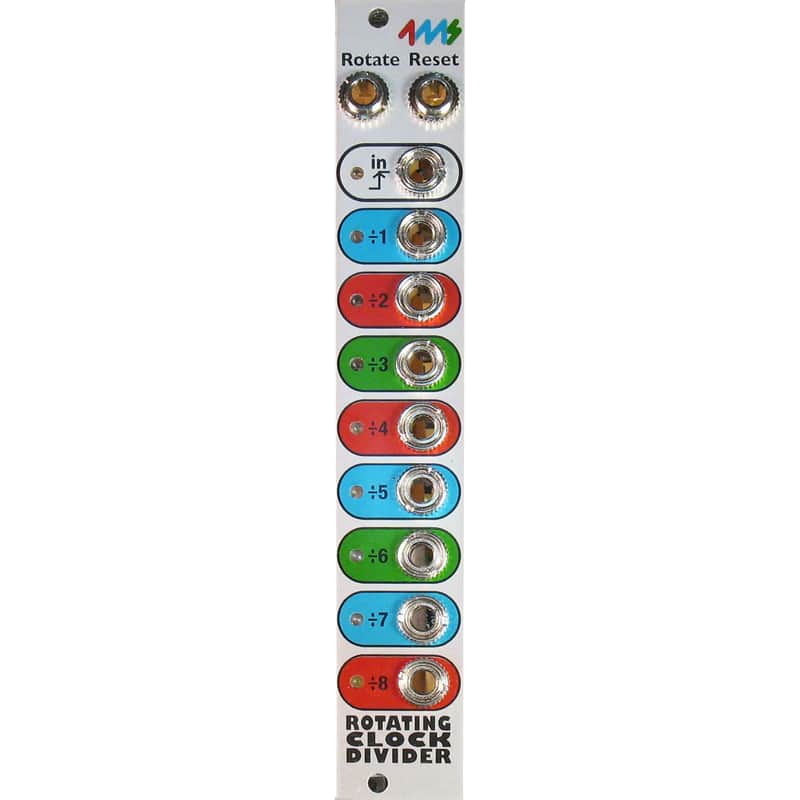

4MS RCD ROTATING CLOCK DIVIDER v2 : BRAND NEW : [DETROIT MODULAR]

• 4 H.P. Eurorack format
• Divide-by-1 to Divide-by-64, on 8 output jacks
• CV Rotate jack to shift divide-by amount on each jack
• CV Reset jack to reset/re-sync all jacks
• Optional break-out panels to expand functionality (MIDI, Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

Jacks

• Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
• CV Rotate (0V to +5V input)
• CV Reset (5V to 15V trigger)
• Divided Clock Outputs (8 jacks):
  • Divide-by-(1+R)
  • Divide-by-(2+R)
  • Divide-by-(3+R)
  • Divide-by-(4+R)
  • Divide-by-(5+R)
  • Divide-by-(6+R)
  • Divide-by-(7+R)
  • Divide-by-(8+R)
  ...where R is the CV Rotation.
• Selectable Gate/Trigger mode:
• Selectable Divide range up to Divide-by-64:
  Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
• Selectable Auto-reset:
  Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
