In perfect working condition. I believe the default firmware is installed but I am not completely sure. Has some rack rash. Includes Screws and power cable.
Original Description:
A DIY eurorack module! This complete and easy-to-build DIY kit is one of the cheapest ways to get a voltage controlled oscillator in your modular. It is based on digital FOF synthesis and sounds completely different than all other oscillators! It can do minimalistic clicks and plops, screaming leads, fat basslines, weird noises or chiptunes.
How it works

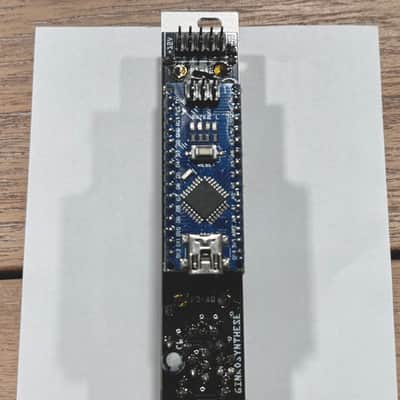

Two triangle-shaped grains form the basis of the sound. The sound is converted to a PWM output and routed via an (optional) low-pass filter and a 100uF capacitor to the output – so no external DAC is required. The low-pass filter on the PCB can be bypassed if you want. Bypassing the filter provides more clarity and a slightly louder output but more artifacts in the sound.
Not bored yet?
Here comes more information about the synthesis technique and you will understand why I called this module “Grains”.
The “Grains” is based on FOF synthesis or formant synthesis. FOF synthesis is closely related to synchronous granular synthesis. It uses two simple triangle-shaped grains. The grains are separated by the same amount of time. With granular synthesis, the spacing within the grains radically change the texture that is created. The FOF grains have very little parameters: pitch and decay. In the basic “Grains” code the 2 decay values are fixed to most musical sounding and can not be altered via potentiometers. So only the pitch of the two grains can be altered via pots (or the cv inputs) and the overall grains repetition which provides the pitch of the output.
| Listed | 2 years ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Synth Module Function |
|
| Horizontal Pitch |
|
| Analog / Digital |
|
