Main Features

High Quality & Heavy Duty DMX Cable hand-made in the USA

DMX512 and AES/EBU digital cable with 2 pairs of 24 AWG stranded bare copper

Features cellular polyethylene insulation, an overall shield, and a matte PVC jacket

5-Pin male & female connector with Nickel housing and silver contacts

Rugged zinc Diecast shell, long-lasting and dependable

Technical Specifications

Connectors: 5 Pin Male & Female with Nickel housing and silver contacts

Conductor: 4 x 24 AWG Stranded, 7 Strands 32 AWG, Bare Annealed Copper

Insulation: Cellular polyethylene / Wall Thickness .017" nominal / Diameter .058" nominal

Color Code: Black paired with red, green paired with white

Drain Wire: 1 x 24 AWG Stranded, 7 Strands 32 AWG, Tinned Cooper

Capacitance Between Conductors: 13.5 pF/ft @ 1 kHz

Capacitance Conductorto Shield: 25 pF/ft @ 1 kHz

Resistance at 20C: 25.4 ohms/1000 ft.

Characteristic Impedance: 110 ohms +/- 15 ohms @ 1 MHz

Jacket: Black matte finish polyvinyl chloride / Wall Thickness .030" nominal / Diameter .290" +/- .005"

Assembly: Conductors twisted into pairs and 2 pairs cabled together with 4 1/2" maximum left hand lay

Fillers: Fibrilated polyethylene as required to make round

Insulation: Aluminum Mylar.

Overall Diameter: 0.169"

Temperature Rating: 0 C to 75 C / 300 Volts

Standards Specifications: USITT & AES / EBU

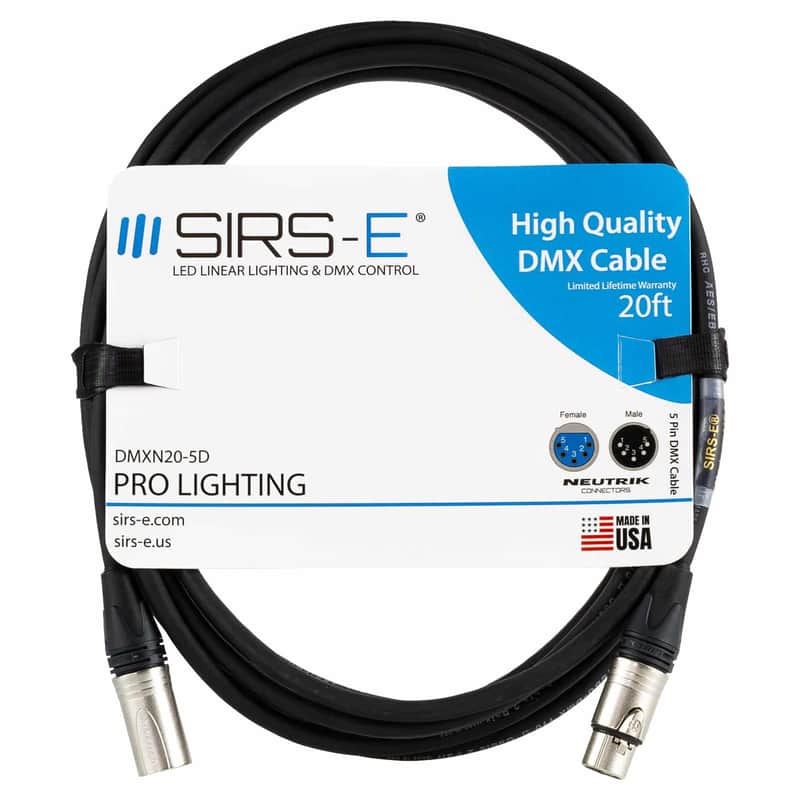

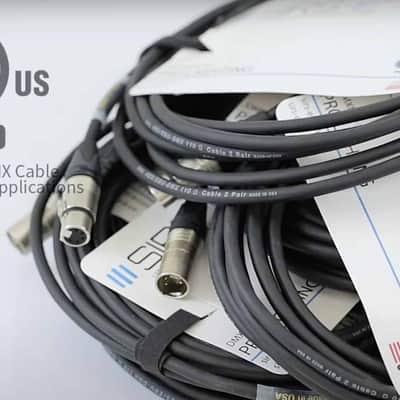

SKU# DMXN20-5D High-Quality Hand-Made Cable. The SIRS-E® DMXN20-5D DMX Cable, made in the USA, features high-quality 5-pin XLR Neutrik Connectors and utilizes Rapco Horizon's 110-ohm digital Pro Lighting Cable. This cable is commonly used in theatrical productions, concerts, and other live events for controlling stage lighting and effects. DMX (Digital Multiplex) cables are specifically designed to carry digital signals for such applications.
