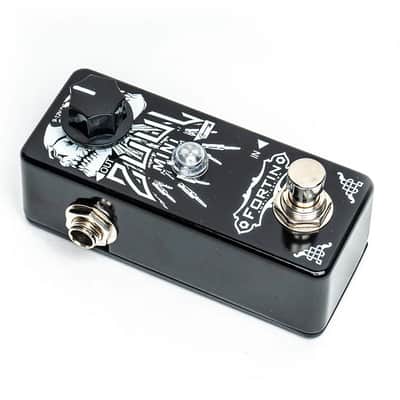

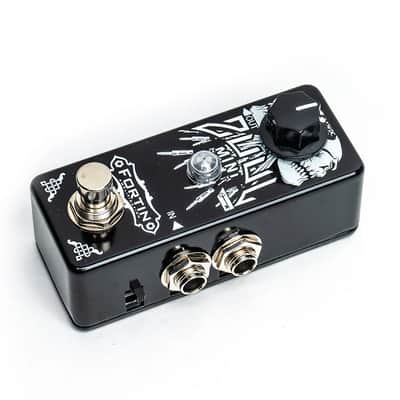

All the same features as the original Zuul® but in mini-form factor!

The mini Zuul®'s threshold knob also controls the dynamics of the gate circuit. Perfect for guitar, bass or any signal source because of the high quality studio specifications.

Use in front of an amplifier or in a series effects loop. Dual colour LED for visual feedback gating action: Green = Open, Orange = Closed, Off = Bypass.

The KEY input signal can be directly from your guitar (r.e. split from Roach or Spliff) or other signal source which lets you go from clean to high gain without changing the Threshold knob. This powerful feature lets you control the gate with a different signal than what flows through the input/output jacks of the ZUUL®. Side switch (internal jumper on early versions) to change the threshold range to compensate for different input signal levels. Industry standard true bypass switching.

CONTROLS:

• Gate: Adjusts how much level is required to open the noise gate and allow a signal to pass through.

TECHNICAL SPECS:

• Built in U.S.A.
• Highest grade materials selected for superior sound, response and reliability
• Industry Standard 3DPT true bypass mechanical stomp
• 2CM, 3CM, or 4CM applications
• Dynamic Range: 120dB
• THD: 0.025%
• Pedal size (W/D/H): 3.6" x 1.5" x 1.2" (92.5mm x 38.5mm x 30.99mm)
• Shipping Weight: 250g
• Adapter (not included): 9-12vDC 40mA, Center Pin Negative (fully regulated)
• Includes Fortin’s limited 1-year warranty
