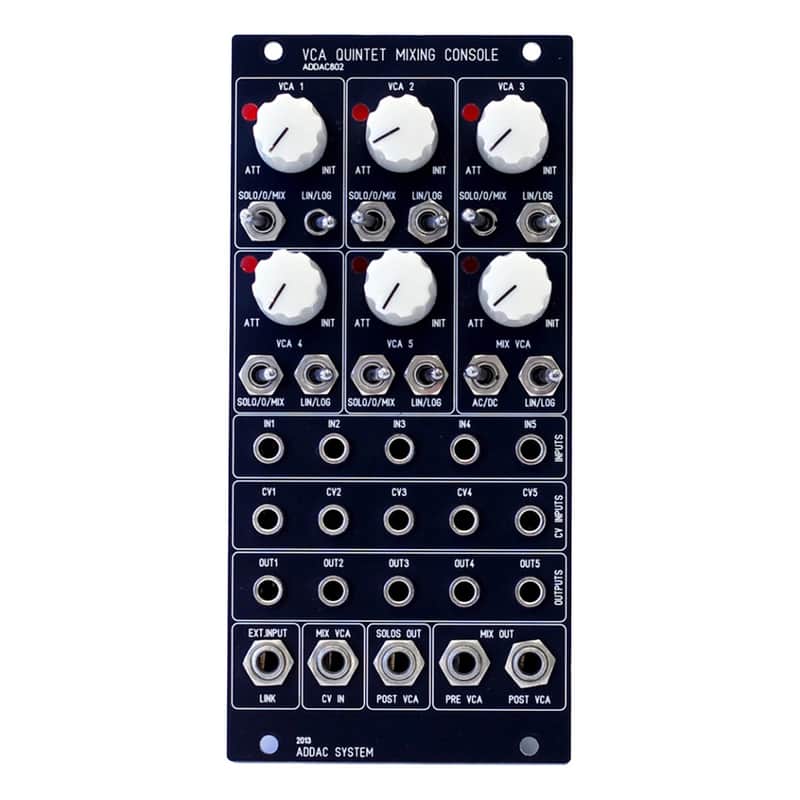

ADDAC 802 VCA Quintet Eurorack Module

We say...

Comprehensive mixing VCA with flexible routing options galore.

Manufacturer's description

This module comes to update our previous ADDAC802 Audio Mixer.

Features

• 5 Channel Mixer
• 1 Master Output
• External input into the Mix channel for daisy chaining.
• 2 independent mixing paths, Solo and Mix
• Mix Output includes a 6th VCA with Pre and Post outputs

Each of the 5 channels has:

• VCA with initial Knob
• Monitor LED
• Independent output
• Linear or logarithmic control
• Solo/Off/Mix switch that routes their audio to the Solo Channel or the Mix channel. In Off position the VCA does not go to the outputs.

All 5 VCAs can be used separately for different sources (audio or cv) or mix in 2 different chains.

Outputs:

• 1 Pre Master VCA output
• 1 Post Master VCA output
• 1 Solo output

The Solo line is also intended for Pre Listening purposes, using this output to connect your headphones through some headphone amplifier module.
