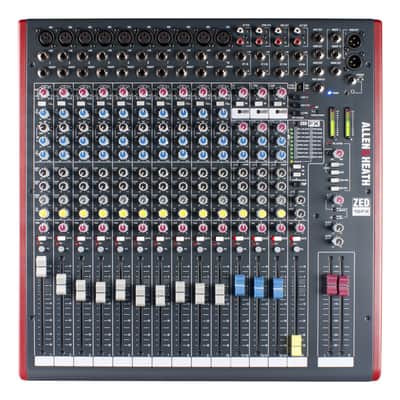

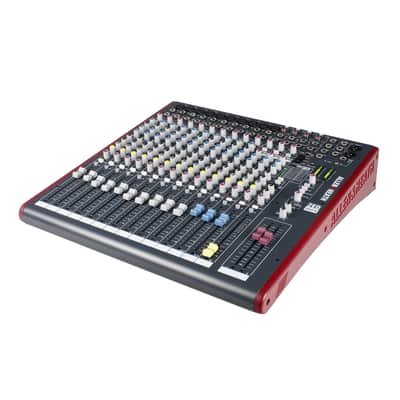

Allen & Heath’s ZED-16FX Multipurpose Mixer with FX is a compact, versatile mixer that’s easy to rack-mount into any audio setup, while its portability makes it the ideal choice for small bands taking their music mobile. With 10 mono channels, 3 stereo channels, swept semi-parametric EQ, Duopre amps, and more, the ZED-16FX delivers the tools musicians, venues, and hire companies need to ensure professional sound quality.

Leave your mark on your music with the ZED-16FX’s premium collection of 16 time-delay effects. Laid out for intuitive, streamlined navigation and editing, use 3 buttons with 9 display LEDs to craft your sound with time delay, reverb, and more.

Built into the ZED-16FX is a responsive 3-band, swept mid-frequency EQ design at uses MusiQ. Its optimized slope (Q factor) allows you to precision-equalize individual instruments in your band.

The ZED-16FX comes with DuoPre pre-amplifiers that use a 2-stage design and carefully controlled gain in each stage. These preamps boast a gain range of 69dB and reliably-even gain control when amplifying a signal from the mixer’s XLR input. Most of the gain comes from the first stage, which keeps unwanted noise to a minimum. Plug line level signals into the preamp’s second stage using the line input jack socket, which results in less noise when using line input or when matching a higher input impedance.

The ZED-16FX comes with configurable USB audio inputs and outputs. No need to install external soundcards—just plug in a USB lead and select USB routing on the mixer to get started right away at your recording. This feature gives you CD-quality audio to and from your Mac or PC, while switches and connections via the mixer’s jack socket terminals offer a variety of send/return options. Rounding out the ZED-16FX’s connectivity options are 2 stereo inputs for MP3/CD players or keyboards, as well as professional XLR stereo outputs and a versatile monitoring section that lets you plug in headphones and/or speakers.

Allen & Heath ZED-16FX Features

• 10 mono mic/line inputs
• 3 stereo channels with 2-band EQ
• 16 internal time-delay effects
• Neutrik mic XLRs
• Neutrik ¼ inch jacks
• Channel insert
• Super wide gain DuoPreTM mic line input
• 3 band EQ with MusiQ
• 2 pre-fade Aux sends
• 1 post-fade Aux send
• 1 internal FX send
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Mono/stereo function on auxes 1&2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
• Rack ears available
