Artec ATE-4 pg-824 PRE AMP EQ SYSTEM AND PIEZO PICKUP FOR ACOUSTIC GUITAR

THE GUITAR MAN STORE

1013 SOUTH SALISBURY BLVD

SALISBURY MD 21801

open m-sat 10 am to 6 pm

WE ARE A AUTHORIZED ARTEC DEALER --

THIS PRODUCT HAS FULL FACTORY WARRANTY --

WE HAVE BEEN SELLING THIS EQ SYSTEM AT  OUR RETAIL STORE --

EVERYBODY LOVES THIS AFFORDABLE PIEZO PICKUP SYSTEM !!!!

SHIPPING IN THE USA $0.00

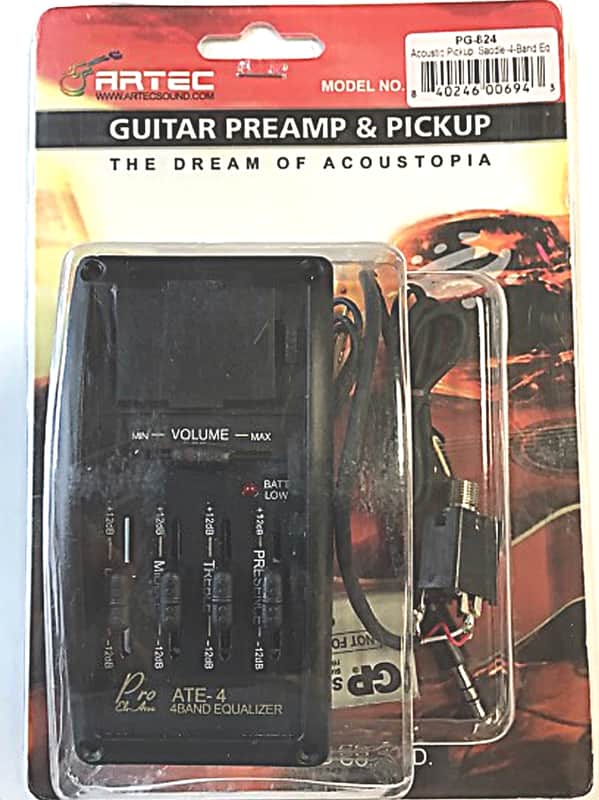

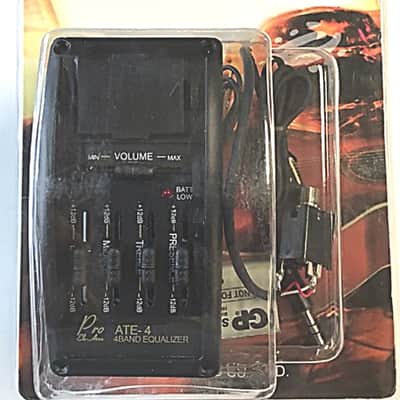

Electrify your acoustic guitar with the ARTEC ATE-4 Acoustic Guitar PREAMP SYSTEM AND PIEZO Pickup. Ideal for classical and steel-stringed guitars.


it features four band equalizer - Bass, Middle, Treble & Presence - with Master volume and Low Battery check LED. Using metal case could eliminate the noise and the slim body case could be fit in any size of guitars.

 ATE-N, ASE-N, ATE-4, ASE-4  Common Features

Nominal input level:
Frequency Response:
Input Impedance:
Output Impedance:
Power Supply:
Battery Life:
Bass control range:
Middle control range
Treble control range
Presence control range:
Low Battery:
Current Drain:
Input Jack:
Output Jack:

-20 dBV
20 Hz - 20 kHz
1 MOhm
1 kOhm
9 V Alkaline Battery
over 1800 hours
± 12 dB 80 Hz, 570 mVp-p
± 12 dB 800 Hz, 490 mVp-p
± 12 dB 3 kHz, 500 mVp-p
± Cut 12 dB 15 kHz, 500 mVp-p
Low  Battery check at 5 V
Less than 0.3 mA
2.5 mm Mono Jack
1/4" Phone Jack

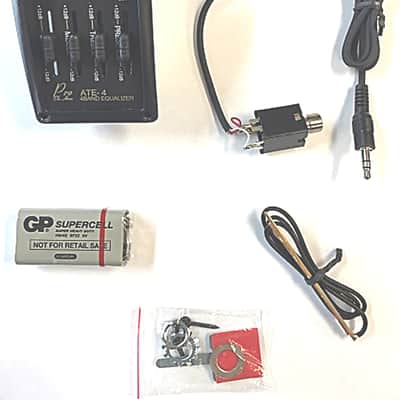

all parts included
pre amp system
output jack with pre soldered and wired plug
piezo pickup with wired plug
9 volt battery
washers
double sided wire holder for inside the acoustic
cut out template
Free shipping in the USA
