Dynamic Destination Controller

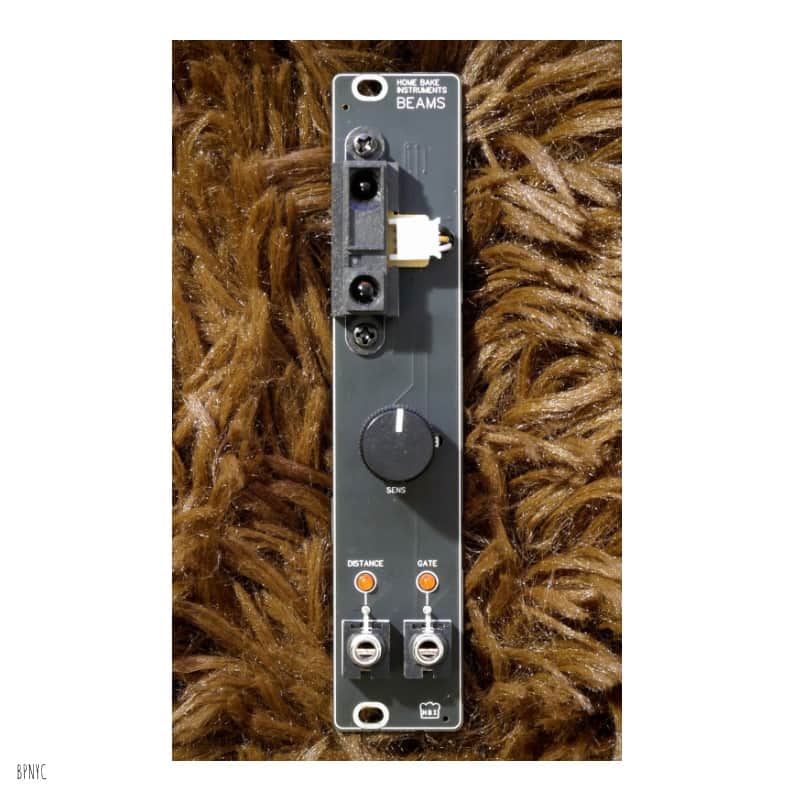

BEAMS is a module with a distance sensor that outputs CV/GATE. It outputs the distance from the module to the obstacle as CV. A GATE signal can be output by setting a threshold value.
Controls
SENCE : For distance; sets the threshold at which the GATE signal is turned on.
specification output
DISTANCE 0 ~ +10 [V]
GATE 0 / +6.6 [V]
power supply
+12v 141mA
-12v 2.8mA
size
Width 5HP
Depth 14mm
Height 21mm
＊When the detector is exposed to the direct light from the sun, tungsten lamp and so on, there are cases that it can not measure the distance exactly.
