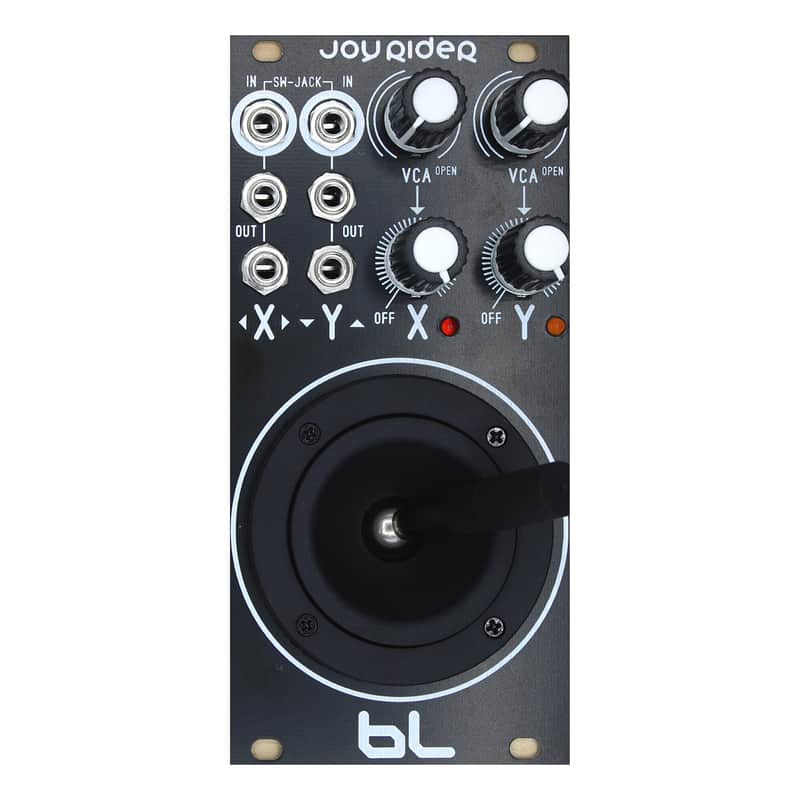

blue lantern modules Joy Rider Joy Stick black

BLM Joy Rider Joystick

Width: 12hp

Current: +28mA -20mA

What does this do?

You have X and Y axis on the Joystick. There is no spring return, it is fully free.

There are two internal vca's. One for each axis. On the X axis left to right produces 0-10V. On the Y axis down to up produces 0-10V. There is output attenuation for each axis, so that you can limit the output. For example you can limit the voltage to 5V.

The VCA knob adjusts the curve for the joystick. You can turn the VCA knob fully clock wise to open the vca.

When a synth level audio signal is patched into the input jack, you can use this as a manual VCA. You can patch an LFO, negative voltage source, VCO, etc.

This module is very easy to use.

Features:

-INPUTS for both axis (VCA)

-Dual Outputs for both axis

-0 to +10V output when nothing is patched into input jack.

-Attenuation on the output. On both axis.

This module is great for live performance.
