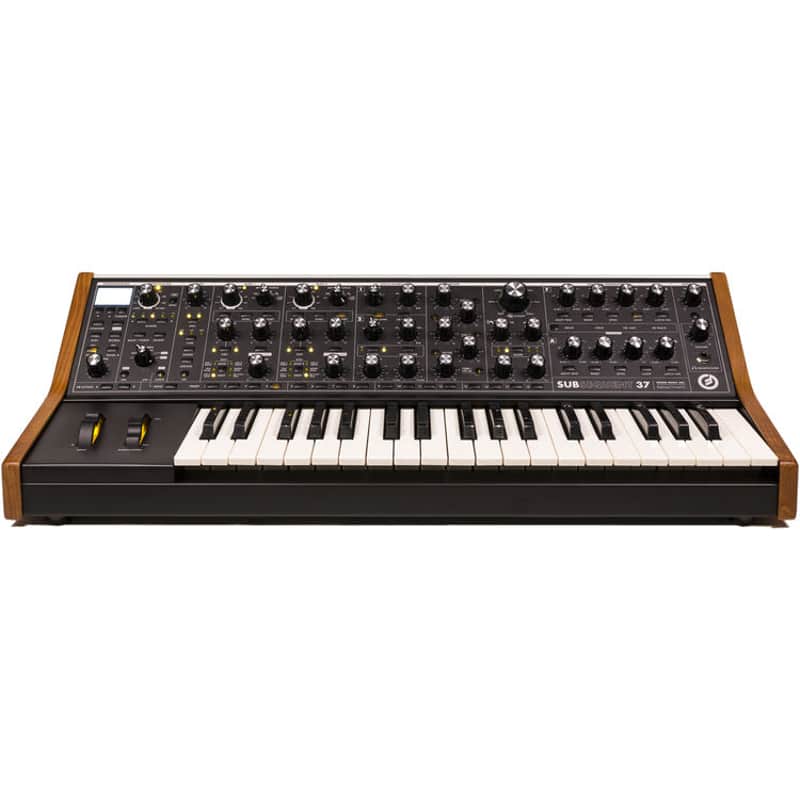

The Moog Subsequent builds upon the success of the original Sub 37 Tribute Edition synthesizer with several enhancements and is well suited for synthesizer enthusiasts, professional musicians, and sound designers. Upgrades include an updated sound engine for better sonic dimension—and more than twice the headroom of the original mixer—an updated keybed for a lightweight touch and swift action, velocity, aftertouch, and a higher-powered headphone amplifier. The filter's multidrive circuit has also been expanded for a wider range of dirtier tones.

The original sound engine and design is based on the Sub 37 Tribute Edition, which boasts a paraphonic synth voice and features the ability to play two notes at a time. It puts a full palette of sound-creation tools at your fingertips with its 40 knobs, 74 switches, and dedicated LCD display. The synth engine includes two oscillators and a sub oscillator for sound generation, and two LFOs for modulation. It also has an arpeggiator, step sequencer, glide, classic Moog ladder filter, and two ADSR envelope generators for sound-shaping. There are 256 presets available for saving patches.

Features

• Perform in Mono or Duo modes
• 37-note, velocity-sensitive keyboard with aftertouch
• Two modulation busses with assignable source and destinations
• DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
• 256 presets -16 banks of 16 patches
• Syncable arpeggiator and step sequencer
• Classic Moog Ladder Filter with resonance, multidrive, and selectable filter slopes
• Duo Mode: Allows oscillator 1 and oscillator 2 to be played independently
• Arpeggiator/Step Sequencer: User-programmable
• A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for external audio input and feedback, which feeds the output of the filter directly back to the input of the mixer
• Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function

Specifications

Instrument Sound Engine 100% analog Polyphony Selectable monophonic or paraphonic Keybed 37-note, semi-weighted with after-pressure LCD 128 X 64-pixel LCD with white backlight Controllers Pitch Bend, Mod Wheel, After Pressure, Velocity Sound Source 2 x variable waveshape oscillators
1 x square wave sub oscillator
1 x analog noise generator
1 x external input/filter feedback Oscillator Oscillator Calibration Range: 22 Hz to 6.8 kHz, (note range at 8' = 18 to 116) Portamento Glide Module: Assign to Osc1/Osc2/Both
Type: LCR, LCT, EXP, Gated, Legato Filter 20 Hz to 20 kHz Moog Ladder Filter with 6/12/18/24 dB/oct filter slopes and multidrive Transpose ±2 octaves Arpeggiator Arpeggiator / Sequencer: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencer Inputs and Outputs Audio Input: 1 x 1/4" / 6.35 mm TS
Audio Output: 1 x 1/4" / 6.35 mm TS
Headphone Output: 1 x 1/4" / 6.35 mm TRS with separate volume control Presets 256 Presets: 16 banks x 16 presets MIDI I/O MIDI In: 5-pin DIN connector
MIDI Out: 5-pin DIN connector
MIDI over USB: USB Type-B CV Interface CV/Gate Inputs: Filter CV, Pitch CV, Volume CV, KB Gate (1/4" / 6.35 mm)
CV Destinations: KB Pitch (is also sequence pitch), Velocity, Aftertouch, Mod 1, Mod 1x Ctrl, Mod 2, Mod 2 x Ctrl, Filter EG, Amp EG, Pitch Wheel, Mod Wheel, Seq Mod, Duo Pitch
Gate Destinations: KB Gate (is also sequence gate), Ext. Gate, Arp/Seq Clock, Arp/Seq Run/Stop, Arp/Seq Step 1 Trig, Filt EG Trigger, Amp EG Trigger, LFO 1 Rate, LFO 2 Rate Modulation Source Sources: LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter EG/PGM
Programmable Sources: Amp Env, Constant ON, Sine LFO, Noise LFO, Osc 1 Pitch, Osc 2 Pitch, Seq Note, Seq Vel, and Seq Mod Destinations Destinations: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time/PGM
Programmable Destinations: Filter Resonance, Filter Drive, Filter Slope, Filter Env Amount, Filter Keyboard Amount, Osc 1 Level, Sub Osc Level, Osc 2 Level, External In/Feedback Level, Osc 1 On, Sub Osc On, Osc 2 On, Noise On, External In/Feedback On, Arp Rate, Arp Clock Division, Arp Range, Arp Back/Forth, Arp Ends, Arp Invert, Arp Gate Length, Arp Run, Glide Time, Glide OSC Choice, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, Mod 1 Pitch Amount, Mod 1 Filter Amount, Mod 1 Programmable Amount, Mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, Mod 2 Programmable Destination, Osc 1 Oct, Osc 2 Sync, Osc 2 Keyboard Reset, Osc 2 Oct, Osc 2 Keyboard Control, Osc 2 DUO Mode, Osc 2 Freq, Osc 2 Beat Freq, Filter Env Attack, Filter Env Decay, Filter Env Sus, Filter Env Release, Filter Env Delay, Filter Env Hold, Filter Env Vel Amount, Filter Keyboard Track, Filter Env Multitriggering, Filter Env Reset, Filter Env Sync, Filter Env Loop, Filter Env Latch, Amp Env Attack, Amp Env Decay, Amp Env Sus, Amp Env Release, Amp Env Delay, Amp Env Hold, Amp Env Vel Amount, Amp Keyboard Track, Amp Env Multitriggering, Amp Env Reset, Amp Env Sync, Amp Env Loop, Amp Env Latch, Output Volume, Bend Up, and Bend Down LFO LFO Panel Features: Hi/low range from .01 Hz to 1 kHz, MIDI Sync, KB Reset Envelopes DAHDSR Envelopes with Multitrigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking General Specifications Power 110 to 240 VAC, universal power supply with IEC connector Dimensions 6.8 x 26.8 x 14.8" / 171.5 x 679.5 x 374.7 mm Weight 22.0 lb / 10.0 kg Packaging Info Package Weight 26.65 lb Box Dimensions (LxWxH) 30.5 x 17.25 x 9.75"
