Yamaha PM 1000 "High Gain" vintage microphone preamp, CYCLOPS AUDIO racked 1 channel with DI

DECEMBER 2025 UPDATE:

A heads up to all of my Cycloptic Colleagues:

I will be ending my PM1000 custom pre-orders at the end of 2025. Current lead times are a bit extended as I have a large build queue that I am working through, but some channel strips are still available for builds.

If you’re interested in a personalized/custom Cyclops Audio PM1000 build for your studio, now would be the time to reach out. Head over to the Cyclops Audio website for direct contact link.

Happy Holidays to all!

(Please contact before purchase)

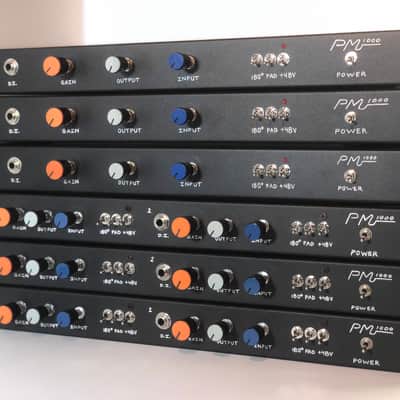

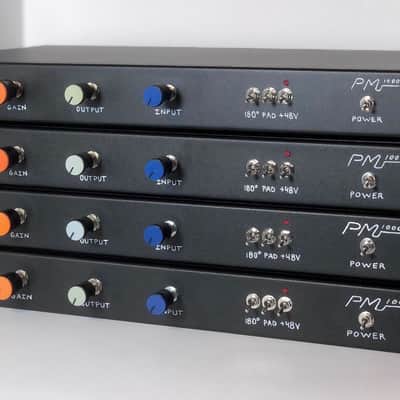

One channel of the infamous Japa-Neve PM1000 racked up as a fully featured mic preamp with 70+dB of gain on tap. I haven't seen these cards racked up like this, thus I have dubbed it the PM1000 "High Gain"......as it has TONS of gain and saturation on deck.

- Phase/20dB Pad/+48v controls

- Unbalanced 1/4" front-panel DI for a true "console direct" sound

- Full control of pre/fader/post gain levels for any degree of saturation - from vintage Neve-ish color to all out saturated/fuzzed

- Transformer-balanced XLR input and TRS output

- Original MIJ Tamura Input transformer and fresh USA EDCOR Output transformer

- Ultra-quiet power setup (power supply included)

Built from the Master/Monitor modules inside PM1000 consoles. These modules use the same discrete preamp as the infamous channel strips, just without the EQ. Because there is no EQ in the signal path, these actually run even a little hotter, with a few extra dB of volume on tap. Fully recapped and ready for studio use. Custom transformer and I/O options are also available.

With full Input/Gain/Output controls, you can take these all the way from that lovely colored “Japa-Neve” sound into deep all-discrete transistor saturation. Many degrees of clipping are on the menu and even thick “fuzz” tones for guitar/bass via the DI can be had. No need for saturation mods on these, they come ready to COOK in their stock form. To my ear, these represent the best value in a single-channel discrete mic preamp on the market. True 70's all-discrete electronics, transformer-balanced with thick iron and every feature one would need.

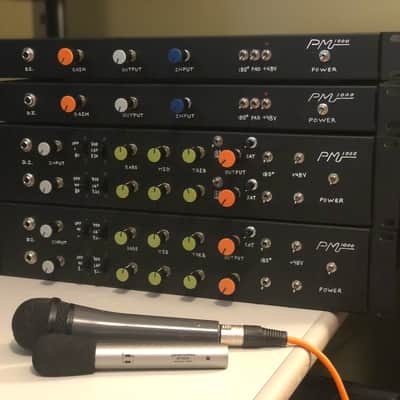

2-channel and 4-channel units are also available, built-to-order. I can rack your Master/Monitor modules in this exact format as well if you have some on the shelf. Reach out for pricing.
