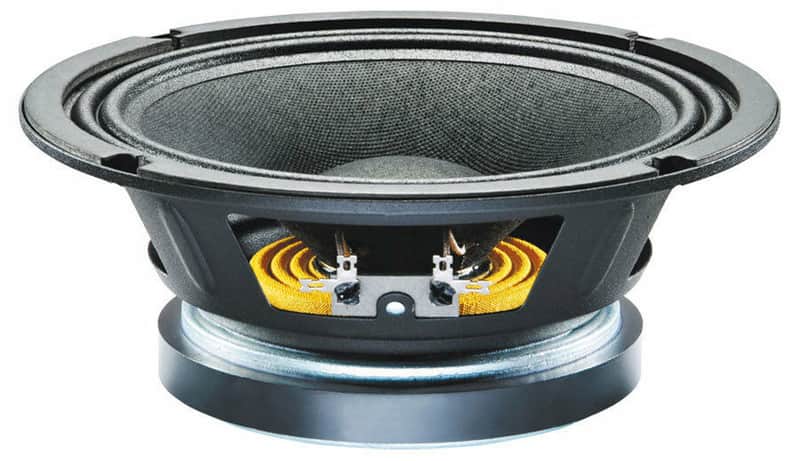

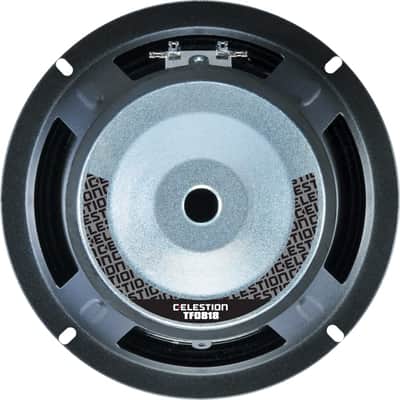

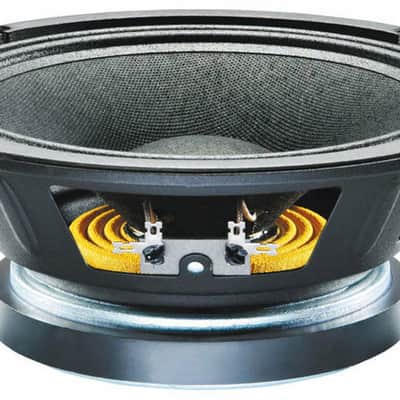

Celestion TF0818 8" Replacement Midbass / Midrange Speaker 200 Watts Woofer 8-Ohms
The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.
TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.
Features
- - 8 inch driver providing 94dB sensitivity and 100Wrms (AES standard) power handling
- - 1.75 inch high temperature copper voice coil wound on polyimide former for increased reliability
- - Achieves optimal performance in compact enclosures
- - Exceptional performance through bass and mid-range- Ideal for 2-way systems
Specifications Nominal diameter
- 203mm / 8in
Power rating
- 100W
Continuous power rating
- 200W
EIA power rating
- 150W
Rated impedance
- 8Ω
Sensitivity
- 94dB
Frequency range
- 70-6000Hz
Chassis type
- Pressed steel
Magnet type
- Ferrite
Magnet weight
- 0.88kg / 31oz
Voice coil diameter
- 44mm / 1.75in
Voice coil material
- Round copper
Former material
- Polyimide
Cone material
- Kevlar loaded paper
Surround material
- Cloth-sealed
Suspension
- Single
Gap height (Hg)
- 6mm / 0.24in
VC winding height (Hvc)
- 13mm / 0.51in
Additional impedances
- 4Ω, 16Ω
