Attenuverter Bank

WHAT'S THAT THING ?

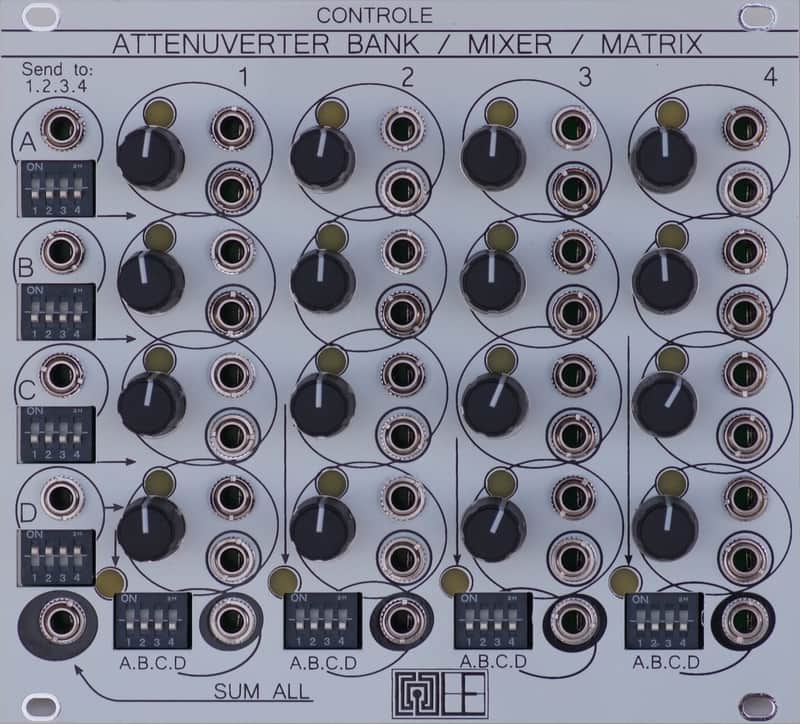

The Attenuvert Bank is an array of 4 by 4 independante attenuverter circuits, with configuration options.
This module can act as the centerpiece for signal (audio and CV) routing.
Each line has a common input. There is 4 switchs that activate this input for each of the 4 attenuverters.
Each column has a mixer output. There is also 4 switchs to activate each of the 4 attenuverters to be mixed into this output.
SUM ALL output mixes together the 4 mix outputs.

It means that this module can act as:
- A bank of 16 attenuverter.
- A 4 by 4 matrix mixer.
- 4 independant 4 to 1 mixers.
- 4 independant 1 to 4 dispatcher.
- A full 16 input mixer (ok, don't espect the sound of a big studio console !)
... or everything in between.

For example:
- 3X3 matrix + 4 to 1 mixer + 1 to 2 dispatch and one independant attenuverter.

All circuit can work with CV or audio signal.

As the AttV-4, each attenuverter circuit has its own output on the back. It adds a CV input to the module to be extended, which this time has an amplitude (and inversion!) setting.



Technical specifications:
+12V : 220mA (max)
-12V : 220mA (max)
28HP, 30mm deep (Approx.)
