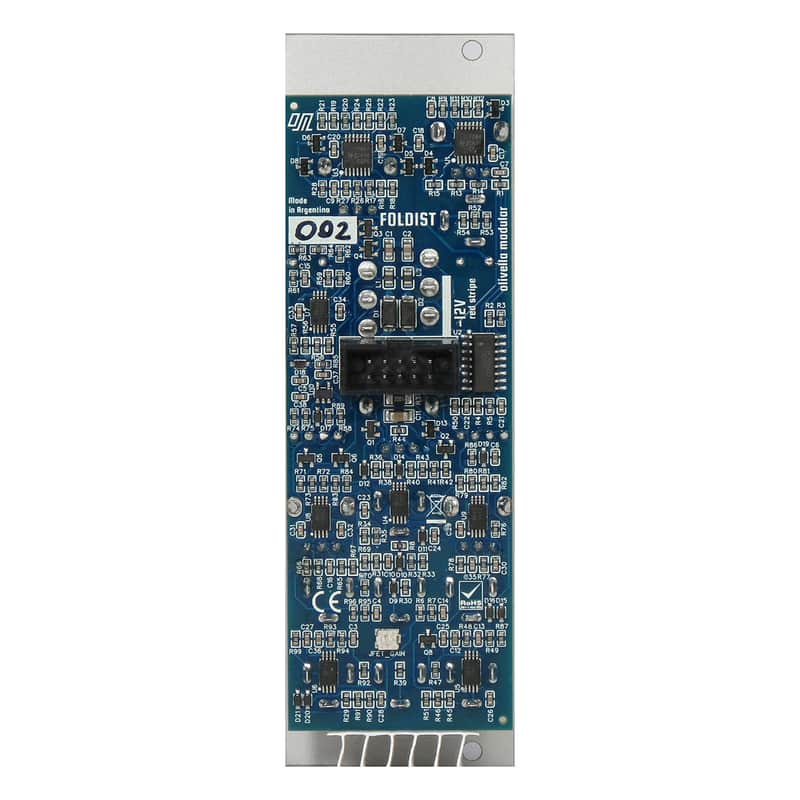

Olivella Modular Foldist Eurorack Wavefolder Module

FOLDIST is a "Serge-style" wavefolder featuring a voltage controlled decay-only envelope generator that's normalled to the FOLD CV input with a dedicated ENV output, voltage controlled symmetry/offset and feedback with a switchable SPICE parameter (for more aggressive and unpredictable feedback) and a switchable JFET input distortion for more character and/or folding square waves (!). The module is also DC-coupled except when the JFET distortion is on.

• Series-type wavefolder
• Bipolar SYM slider with CV input and attenuator
• FDBK slider with CV input and attenuator
• Switchable JFET input stage distorts the incoming signal, even allowing wavefolding of square waves
• SPICE routes the feedback through a full-wave rectifier for a more untamed sound
• VC decay envelope generator, normalled to the FOLD CV input
• The PING input converts almost any signal into a suitable trigger for the internal EG
• ENV output

• 8HP
• Depth: 25mm
• 2mm anodized aluminium panel
• Fully DC-coupled, except when JFET is engaged
• All CV inputs allow audio-rate modulation
• Input impedance: 100 kΩ
• Output impedance: 510 Ω
• +12V: 55mA
• -12V: 55mA
• Reverse-polarity power protection
