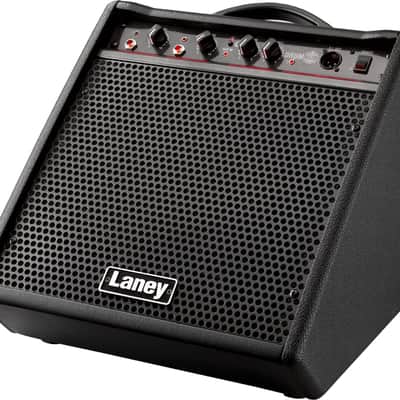

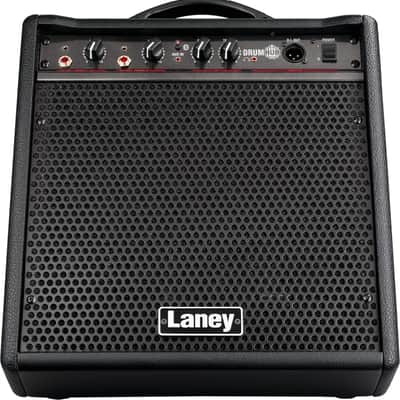

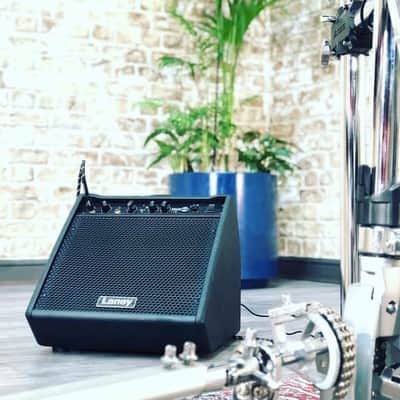

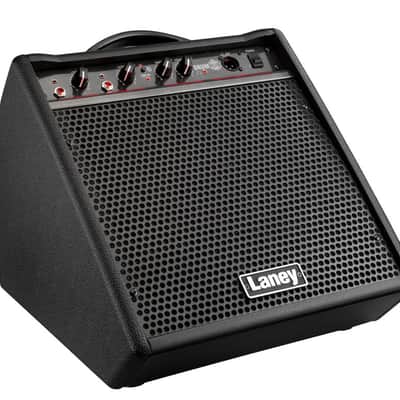

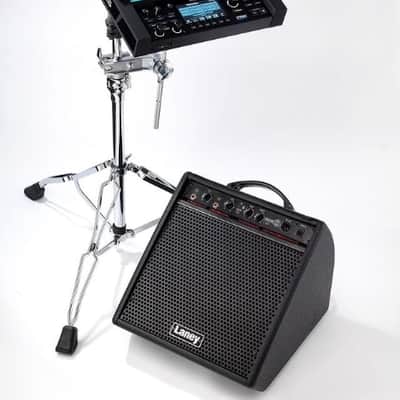

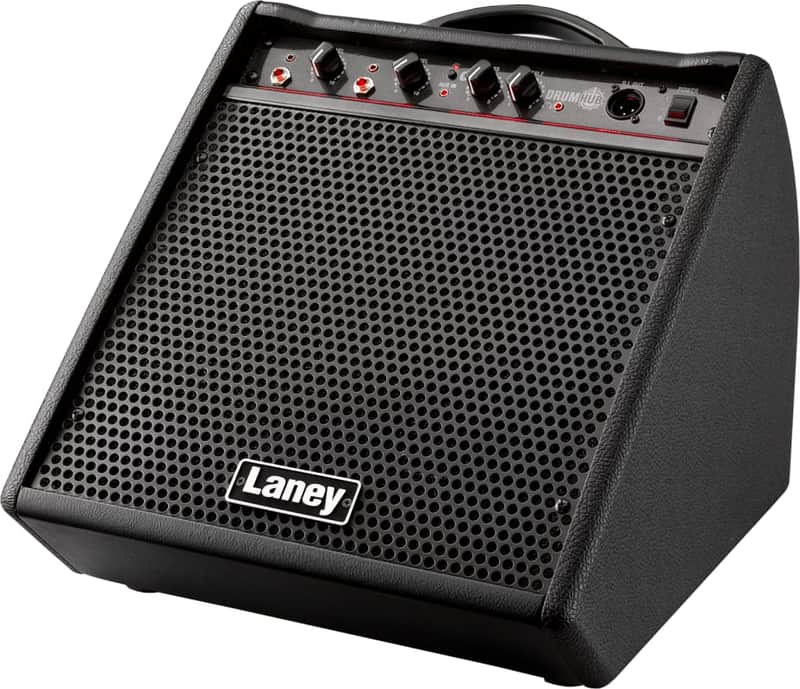

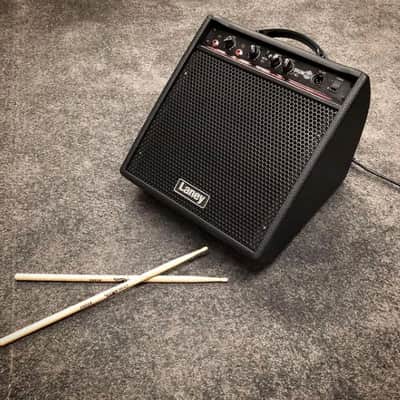

LANEY DH80 Drumhub: Professional Electronic Drum Amplifier 80W W BLUETOOTH Speaker

The DH80 is designed to deliver a wide variety of electronic percussion sounds at home, in the classroom or wherever you choose to use it. Its small foot print, hard hitting output and multiple inputs makes it perfect for use in the classroom. The BLUETOOTH aux in allows you to stream tunes directly from your phone making practising fun and engaging. The DRUMHUB also has a headphone socket, making it possible to practise with minimal distraction to others. The hard-hitting low end of the DH80 delivers all the bass drum you look for in an acoustic bass drum, and the crystal-clear top end makes your E-Drum cymbals sound like the real thing.

COMPACT & POWERFUL.

• Channels: 4
• Power: 80 watts
• Controls: Jack and mini jack inputs and level control on CH1 and CH2, mini jack auxiliary input, Bluetooth wireless technology, bass, treble, headphone socket (mini), XLR DI out
• Switches: Bluetooth wireless technology and power
• Connectors: Jack input and mini jack, auxiliary input (mini jack), headphones (mini jack)
• Dimensions (H x W x D): 288 mm x 360 mm x 376 mm
• Weight: 10 kg
• Colour: Black

 Specifications

• Model: DH80.
• Speakers: 10” coaxial speaker with 3” tweeter.
• Cabinet: Bass reflex, 40° monitor angle, black dual texture covering. Easy grip handle.
• Power rating: 80W
• Inputs: Two Drum/Line channels, both with 6.3mm and 3.5mm stereo inputs and level control. Additional stereo aux Input, and Bluetooth streaming

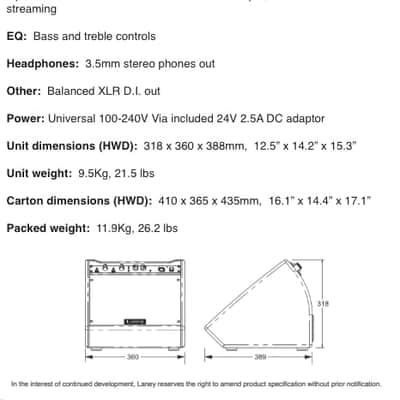

• EQ: Bass and treble controls
• Headphones: 3.5mm stereo phones out
• Other: Balanced XLR D.I. out
• Power: Universal 100-240V Via included 24V 2.5A DC adaptor
• Unit dimensions (HWD): 318 x 360 x 388mm, 12.5” x 14.2” x 15.3”
• Unit weight: 9.5Kg, 21.5 lbs
• Carton dimensions (HWD): 410 x 365 x 435mm, 16.1” x 14.4” x 17.1”
• Packed weight: 11.9Kg, 26.2 lbs

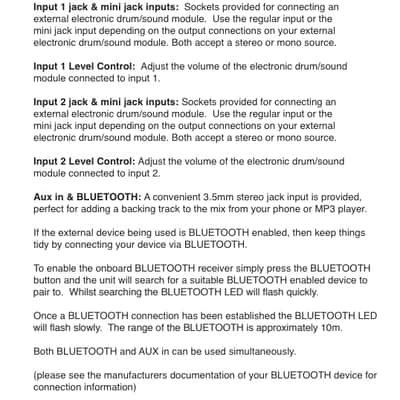

 Input 1 jack & mini jack inputs: Sockets provided for connecting an external electronic drum/sound module. Use the regular input or the mini jack input depending on the output connections on your external electronic drum/sound module. Both accept a stereo or mono source.

Input 1 Level Control: Adjust the volume of the electronic drum/sound module connected to input 1. Input 2 jack & mini jack inputs: Sockets provided for connecting an external electronic drum/sound module. Use the regular input or the mini jack input depending on the output connections on your external electronic drum/sound module. Both accept a stereo or mono source.

Input 2 Level Control: Adjust the volume of the electronic drum/sound module connected to input 2.

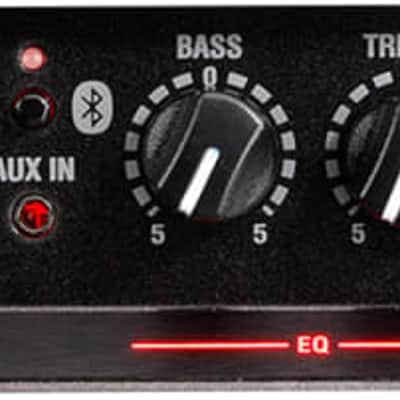

Aux in & BLUETOOTH: A convenient 3.5mm stereo jack input is provided, perfect for adding a backing track to the mix from your phone or MP3 player.

If the external device being used is BLUETOOTH enabled, then keep things tidy by connecting your device via BLUETOOTH.

To enable the onboard BLUETOOTH receiver simply press the BLUETOOTH button and the unit will search for a suitable BLUETOOTH enabled device to pair to. Whilst searching the BLUETOOTH LED will flash quickly.

Once a BLUETOOTH connection has been established the BLUETOOTH LED will flash slowly. The range of the BLUETOOTH is approximately 10m.

Both BLUETOOTH and AUX in can be used simultaneously.

(please see the manufacturers documentation of your BLUETOOTH device for connection information)

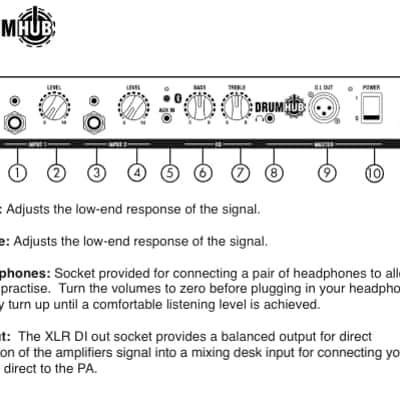

Bass: Adjusts the low-end response of the signal.

Treble: Adjusts the low-end response of the signal.

Headphones: Socket provided for connecting a pair of headphones to allow silent practise. Turn the volumes to zero before plugging in your headphones. Slowly turn up until a comfortable listening level is achieved.

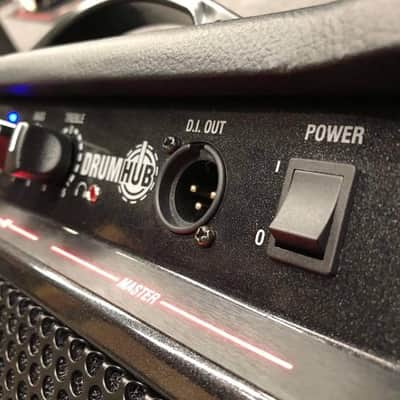

DI Out: The XLR DI out socket provides a balanced output for direct injection of the amplifiers signal into a mixing desk input for connecting your DH80 direct to the PA.
