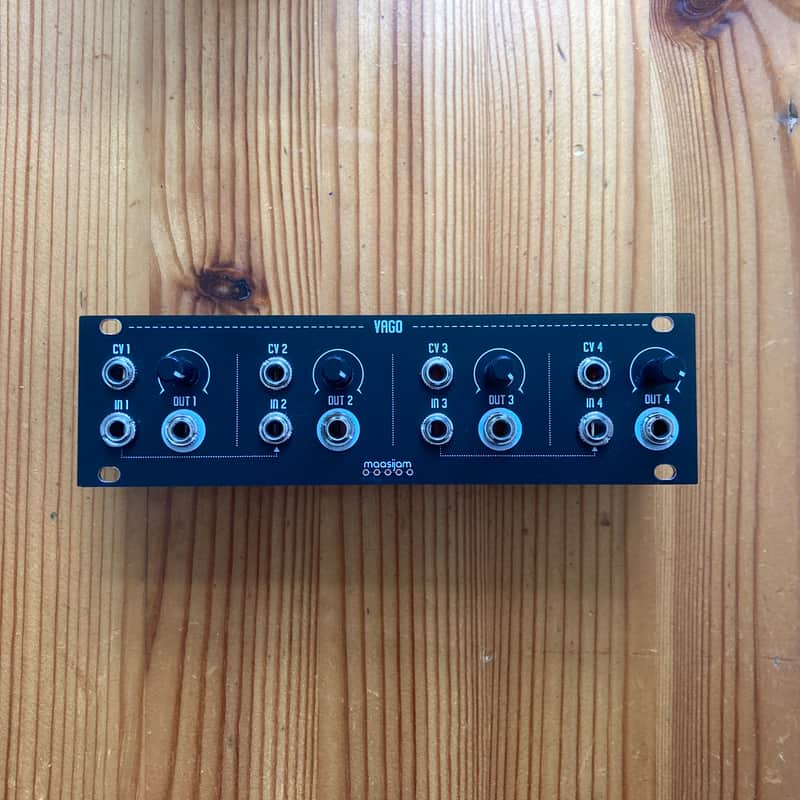

Maasijam VAGO - Black
Free Shipping
from Warren, OH
Our users rate Reverb
From the designer's GitHub:
VAGO - is a simple quad vca in 1u format based on bastl instruments "Quattro Figaro"
- CV INs with attenuators
- The signal from input 1 is normaled to inputs 1/2, and the signal from input 3 is normaled to inputs 3/4

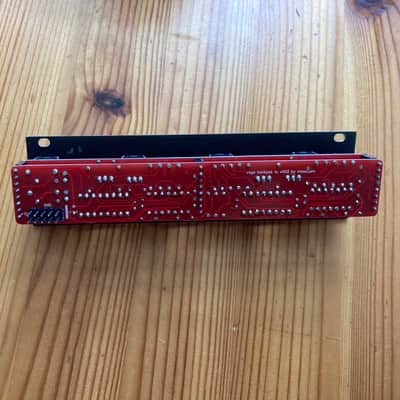

- Completely through-hole
- 28HP
- 17 mA +12V
- 17 mA -12V
- 0 mA 5V
These are very simple lm13700 VCAs, it's a solid tool but it has a quirk: the attenuators do *not* have voltage offsets behind them, which is to say that there is not what would usually be called a "bias" control. TLDR there is no way to open the VCAs without an external voltage or modulation source.
Also, they are DC coupled, so you can use them for either audio or CV.
I’ll ship well packed, with a power cable and 4 m3 screws.
