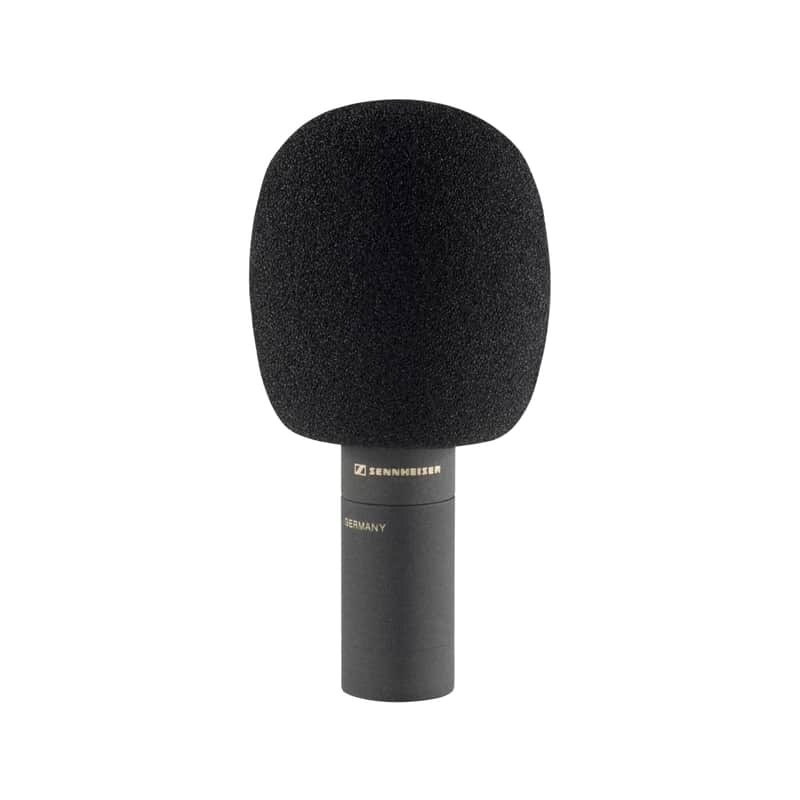

Super-cardioid microphone. Perfect for recording soloists, large instruments like the grand piano but also orchestras. Balanced frequency response within the pick-up pattern. Absolute acoustical separation of instruments.

The super-cardioid MKH 8050 will give higher attenuation of off-axis sound from the side than its cardioid sister model. It is a good choice for recording soloists, where the requirements for lateral acoustic separation are higher.

Features:

-Super-cardioid pick-up pattern

-Modular design

-Wide frequency response 30 to 50.000 Hz

-Symmetrical transducer with 2 backplates providing extremely low distortion

-Extremely low inherent self-noise

-Accurate directional pattern

-Non reflective Nextel coating

-Provides optimum separation of instruments

Includes:

-MKHC 8050 microphone head (supercardioid, condenser)

-MZX 8000 XLR module

-MZW 8000 windscreen

-MZQ 8000 microphone clip

-Aluminum case

Specifications

Pick-Up Pattern: Super-cardioid

Transducer Principle: RF Condenser

Frequency Response: 30–50,000 Hz

Sensitivity in Free Field, no load (1kHz): –34 dBV/Pa (20 mV/PA)

Sound Pressure Level: 142 dB

Equivalent Noise Level:

-A-weighted (DIN 651): 13 dB (A)

-CCIR-weighted (CCIR 268-3): 22 dB

Output Signal: Balanced, transformerless, floating

Output Impedance: 25 Ω

Min. Terminating Impedance: 1,000 Ω

Phantom Power Supply: 48 V ± 4 V

Supply Current: 3.3 mA

Diameter: 19 mm

Length of Microphone Module: 41 mm (74 mm including XLR module)

Weight: 25 g (55 g including XLR module)
