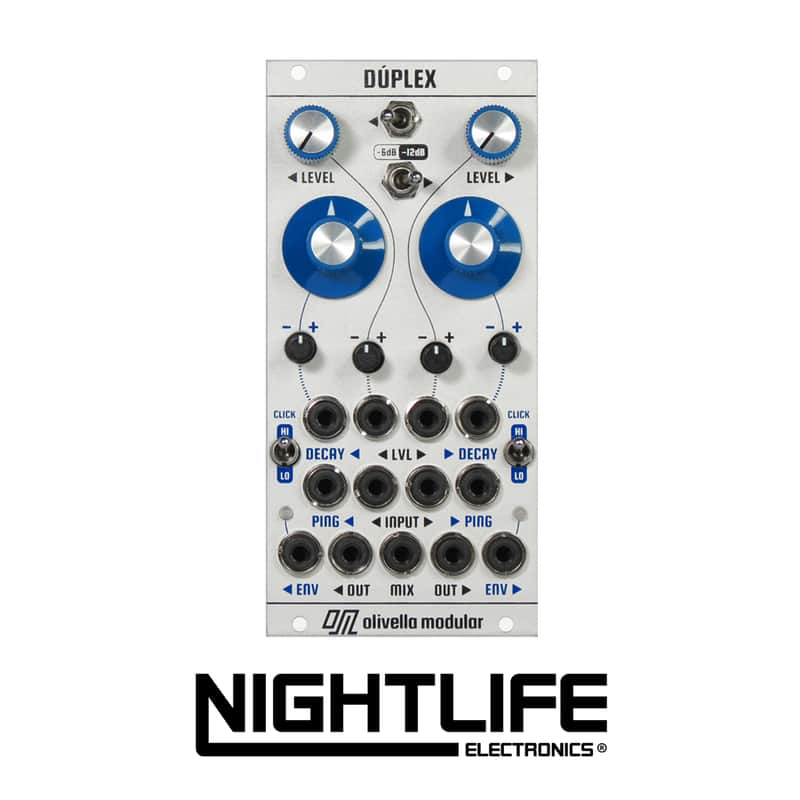

Olivella Modular Duplex - Silver

DÚPLEX is a dual solid-state low pass gate, featuring no vactrols but sounding exactly like the real thing.  Each channel has:  voltage control over decay, level and offset, a PING input that converts any signal into a suitable trigger for the circuit (running all the way into audio rates!), a 1-pole or 2-pole filter response, a switchable CLICK amount and an envelope output. The module is fully DC-coupled, so it can also process CV as well as audio.

• Width: 12HP
• Depth: 30mm
• Power: 110mA @+12v  / 65mA @-12v

Features

• Complex envelope-based vactrol-free core
• DECAY knob and CV input w/attenuverter per channel
• LEVEL knob and CV input w/attenuverter per channel
• PING inputs that convert almost any signal into a suitable trigger for the core
• -6dB/oct or -12dB/oct filtering response switch per channel
• CLICK softens (or not) the initial transient of the sound
• ENV outputs per channel
• MIX output
