This listing is for 2 pickups - matched and calibrated set - bridge (7 kOhm) and neck (6.34kOhm) - Firebird Mini Humbucker - hand made by Q pickups .
These are probably one of the few vintage correct replica`s of an early 60s Firebird pickup - built to deliver.
Pickup cover dimensions are 2.67" x 1.1" x .55" (67.95mm x 28mm x 14mm).
2.94" / 74.6 mm between the centers of the 2 mounting holes.

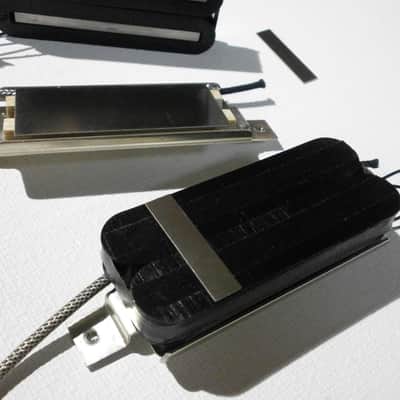

Real vintage Gibson Firebird pickup had a special construction - a set of thin steel plates hidden insidethe pickup.These plates contribute to the distinctive biting tone of a vintage Firebird guitar.
Small plate measures 1" x 7/32" (25.4mm x 5.56mm) and it is positioned on the TREBLE side of the pickup, just under the cover - under the "B" and "G" string - and on the top of the bobbins. Larger steel plate is under the bobbins measures 1-15/16" x 7/8" (49.21mm x 22.23mm). Thickness: 0.015"

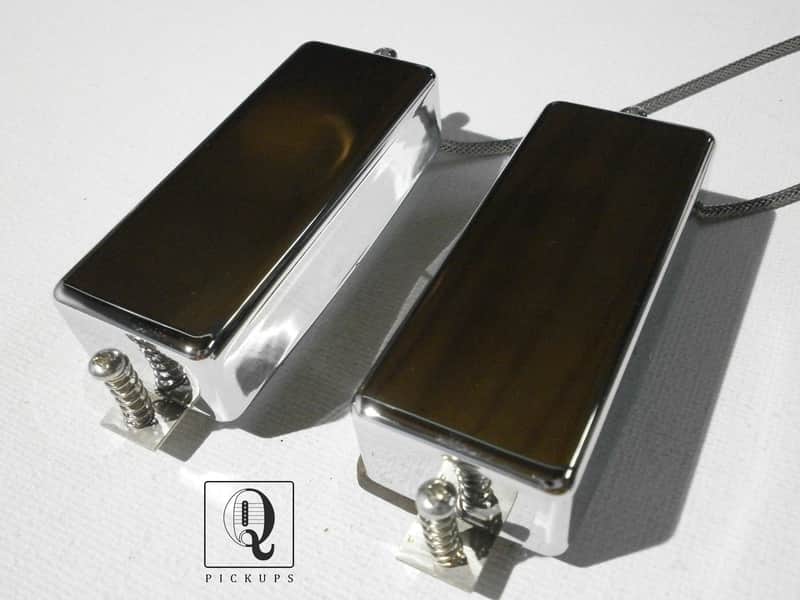

- CHROME NICKEL SILVER COVERS (available with NICKEL, GOLD or RAW NICKEL-SILVER on request)
- NICKEL SILVER base plates with short legs
- period correct steel plates
- vintage reproduction mini humbucker bobbins
- sand cast Alnico V magnet bars
- maple spacers
- vintage style braided push back hookup wire (hot + ground)
- wound with Elektrisola AWG42 pickup wire
- screws and springs included

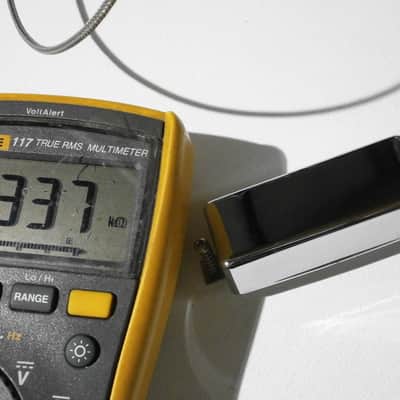

You can see the DC resistance on the photos, measurements will vary depending on temperature.If you need something about these a little different - DC resistance, 4-wire +ground, different cover etc - please let me know and we will work it out.
Mounting screws and springs are included.
PAYMENT: "Reverb Payments" gateway allows us to safely accept the most popular payment methods, including Credit and Debit Cards (Visa, Maestro, Mastercard, American Express and more), PayPal, Apple and Google Pay, Reverb Credits and gift cards and other preferred payment methods.The system is secured and encrypted with around-the-clock fraud detection processes, so your transactions are safe. Plus, all sales made through Reverb Payments qualify for Reverb Protection.
SHIPPING AND HANDLING: Handling and production time is 3-5 business days. Orders with larger quantities of pickups (5 or more pcs) might take longer.
We use Croatia post Air Mail Priority Registered shipping service, usually 1-2 weeks to EU and 2-4 weeks abroad/overseas - with most parcels being delivered by your local post office.
DHL Express is also an option - please contact us for a quote. Tracking info will be available on 17track, USPS or DHL web tracking service
Please check our listings and our feedback. If you have any questions just ask.
Thanks for looking!
