NEW Frequency Central Dark Star (CEM3340 based synth voice) for Eurorack Modular

Seller notes:
Listing is for a single NEW Frequency Central Dark Star in brand new condition for the following piece(s) of equipment: Eurorack Modular. Madisynths is an official Frequency Central dealer. We stand behind these fantastic modules as long time users, with about half of our personal racks consisting of FC synth gear!

Stock Update:
In stock and ready for same day shipping!

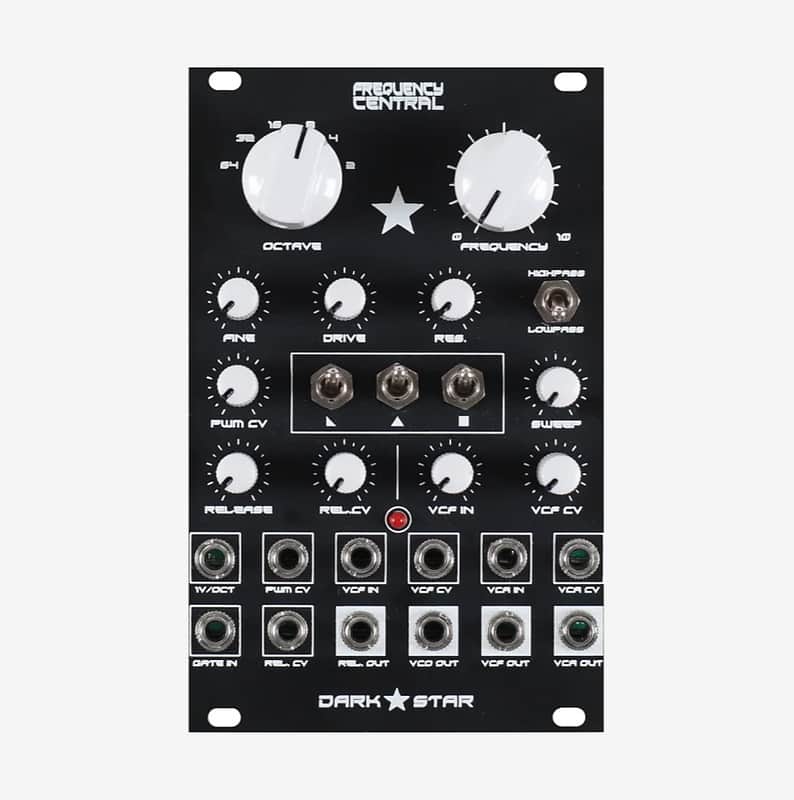

About the Frequency Central Dark Star:
A couple of years back, we developed as a standalone percussion voice. The concept was to bundle all required sub-modules behind one panel, pre-patched, yet also fully modular, with each sub-module having it’s own inputs and outputs. We loved it, as did you. We soon realized that if we were to replace Cosmic Background’s noise generator with a VCO (and do a few other tweaks), we’d have  a cute little fully modular synth voice ripe for sequencing – and that’s how Dark Star was born!

Dark Star consists of 4 sections:

• Voltage Controlled Oscillator based on AS3340 with sawtooth, triangle and pulse waveforms
• Voltage Controlled Filter with lowpass and highpass options, Drive control, Sweep control which attenuates amount of Release CV
• Release generator with CV input for voltage control of release time. Option for sustain via jumper on rear panel.
• Voltage Controlled Amplifier

Together they form a pre-patched super versatile analogue synthesizer voice.

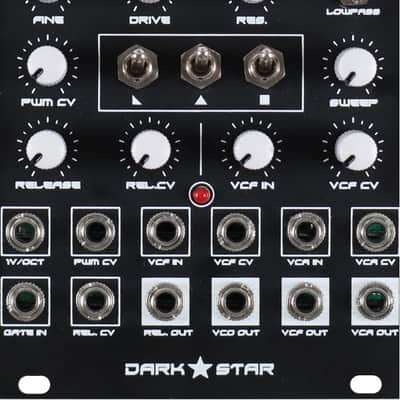

Additionally, each section is fully modular in it’s own right, so there are patch points for:

• 1V/oct CV input
• PWM CV input – attenuator doubles as manual pulse width when no external signal is present
• Gate input for Release or Sustain/Release
• Release CV input for voltage control of Release time
• VCF audio input with attenuator, for introducing external audio
• VCF CV input with attenuator (1V/oct CV is normalized to this input)
• VCA audio input (VCF is normalized to this input)
• VCA CV input (Release CV is normalized to this input)
• Release CV output
• VCO audio output
• VCF audio output
• VCA audio output

Here are some useful patches to try:

• Release CV output to PWM CV input, for swept PWM
• VCF OUT to VCF IN, thickens and further overdrives the filtering
• VCO OUT to VCF CV input, for fizzy FM of the filter
• Use a multiple to patch 1V/oct to Release CV input, lower notes will have longer release, higher notes will have shorter release

Product specifications:

• Depth      35 mm
• Width    16 HP
• +12V draw   28 mA
• -12V draw  28 mA
• +5V draw    0 mA
