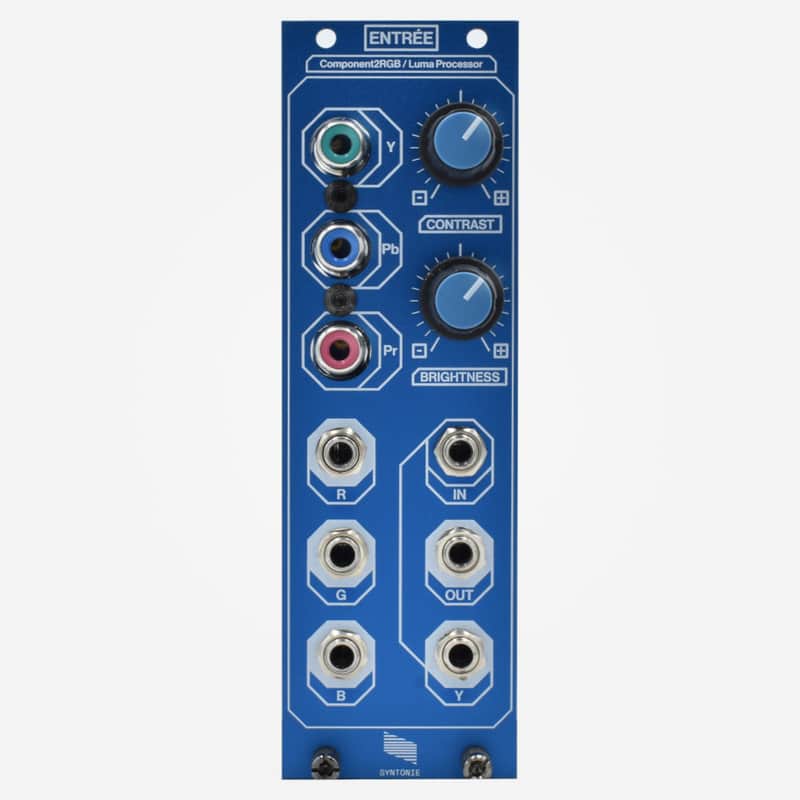

Syntonie ENTREE Component to RGB and Luma Processor Input Module for Eurorack Video Synthesis

Entrée (pronounced [ɑ̃.tʁe], french for input) is a Component to RGB colorspace converter and Luma Processor with the following features:

• Decodes SD/HD Component (YPbPr) to 1V RGBY outputs.
• Y signal is normalized to the processor input which features an attenuverter (contrast) and offset (brightness), plugging a jack in the processor input will break the normalization to allow the processing of another signal.
• Y pass-through RCA at the rear of the module to sync the sync generator/encoder to the external video signal.

It is an update of VU003B with a couple improvements:

• Low noise switching power supply
• Active attenuverter in the processor part
• 75R output impedance on the 1V output jacks to increase the bandwidth, resulting in a sharper picture in HD formats.

The module is powered through standard Eurorack connector or DC barrel.

Specifications:

8HP
90mA +12V
0mA -12V
0mA +5V
45mm deep

Modules professionally assembled by Syntonie for Eurorack Video Synthesis
