Trogotronic m673 / WaveWraith Analog Tube Synth Module w/Breakout（BPNYC)
Free Shipping
from San Diego, CA
Only 1 preorder left
Grab it before it's gone
Our users rate Reverb

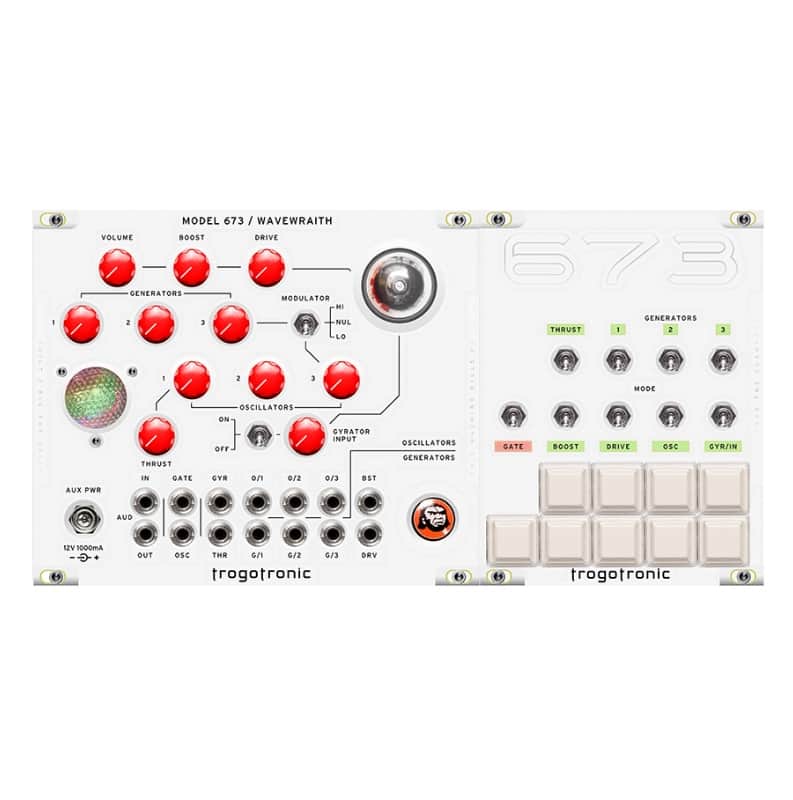

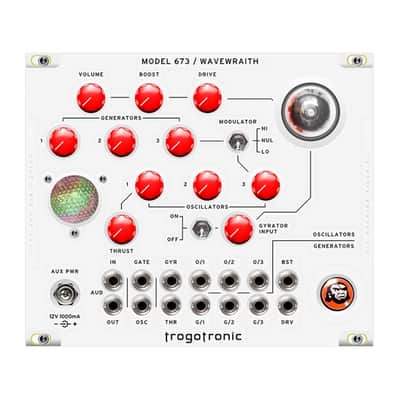

Model m673 WaveWraith is an Analog Vacuum-Tube module that packs the console’s core into a Euro-Module the size of a CD Case. After a tube-warming countdown from ten, WaveWraith is knobs-deep in Interstellar Sonic Horror straight outta the box. Patch into Audio Input & bewitch what’s brung (as an unprecedented sidechain FX) or send a white-hot panic-patch tangler far beyond the event horizon.
A FULL-DOZEN Gate & CV inputs are primed to dock hard in 30hp of your modular space-station & if you’ve got any landing zone left keep the pod-bay doors wide open for the 19hp breakout. The optional performance-button module puts the same layout & premium switchgear as the “Semi-Modular” Console Version at your digit-tips. High voltage vacuum tubes can be hungry so the Optional Auxiliary PSU accommodates power-starved modular-starships @ 0mA load on the +12v rail (21mA load on -12v rail).
- All-Analog Signal Path
- 11 Control Knobs
- Multi-Lamp Analog-Feedback Display
- Audio Input for deeply haunted Audio FX
- 12 Gate / CV 1/8″ Inputs
- 10 Element Vactrol Control-Voltage Array
- 10 CV Attenuators / Parameter Controls
- Gates for Output & Triple-Osc Array
- 9 Multimode Key Breakout Module = Optional
- Aux. PSU = Optional
- Swappable 9-Pin Twin-Triode Tube
—which is to say you can change “glass” with MOST of the MANY versions of new (or classic) Twin-Triode Preamp Tubes to subtly alter the overall sound of the instrument.
Simultaneously delicate & brute, terrifying & beautiful, time invested in WaveWraith bears dividends: ghastly transitions, lengthy Rube Goldberg cycles & endless foley ideas for the classic sci-fi horror movie of choice. Instantly playable yet confoundingly deep, WaveWraith packs a haunted universe in CD-Cover sized piece of rack-space.
Main Module Specs:
- Euro-Format
- 30hp
- Depth = 1.75” (45mm)
- +12v rail Peak Cold-Start 950mA; Running 365mA
- +12v rail Peak w/Optional Auxiliary PSU 0mA
- +5v 0mA (not used)
- -12v rail Peak 21mA
- 12vDC Aux. Power Supply: Optional
Main Module + Breakout Specs:
- Euro-Format
- 49HP
- Depth = 1.75” (45mm)
- +12v rail Peak Cold-Start 950mA; Running 425mA
- +12v rail Peak w/Optional Auxiliary PSU 0mA
- +5v 0mA (not used)
- -12v rail Peak 21mA
