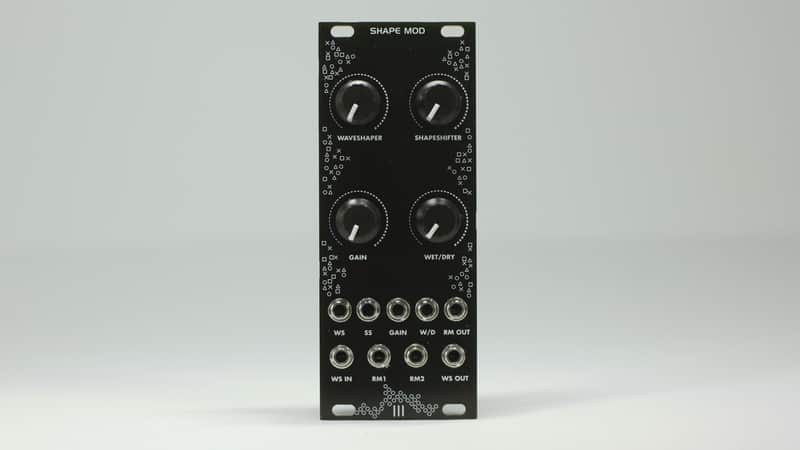

Tre Modular - Shape Mod

Tre Modular – Shape Mod is a powerful waveshaper inspired by soviet synthesizer Alisa 1377. This module not only functions as a waveshaper but also has a built in ring modulator.

Waveshaping part of this module is based on Alisa 1377 waveshaper. However Shape mod is a step further. It has two additional waveshaping stages that expand on the original waveshaper’s capabilities, while still maintaining characteristic Alisa sound.

Shapeshifter gives control over the polarity of one of the waveshapers stages. This changes the characteristics of the resulting sound. It changes from softer sounding waveform to a more harsh sound.

Shape mod has a built in ring modulator using AS3363 IC. With nothing plugged in, waveshapers output is normaled to both ring modulator inputs.

Specifications:

Max depth: 2.5cm

Width: 10HP

Front panel thickness: 1.6mm

Power consumption :

43mA at +12v

42mA at -12v

CV inputs: 0v to +10v

Comes with power cable and mounting screws.
