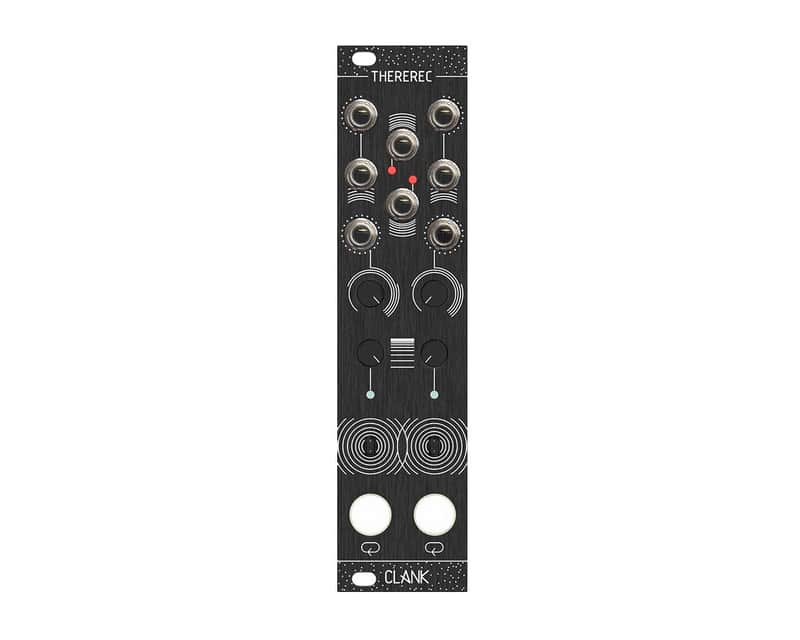

Clank Thererec CV Recorder and Generator

Thererec is a two channel proximity based CV recorder and generator. Record and loop gestures for the most musical control of your modular ever!
Thererec sensors will track your movements to generate a voltage flow, the LEDs and the CV outputs will reflect those movements. To arm a channel press the loop button. Entering in the sensor field (4-5cm) will automatically start recording.
Press the loop button again to stop the take, double tap it to clear. Playback has two operation modes, indicated by the LEDs color:
White: the playback can be started by hitting the sensor or with an external gate. It will be played once.
Blue: the recording is played in loop. To sync it to a rhythm, re-trigger it as you will do in the white mode. In both modes, from the gate outputs, Thererec will emit a short pulse at the end of the reproduction and a variable gate when you hit the sensors by hand. Hold down the loop button to cycle between modes. Keep it pressed to save the recording into the memory (the LED will blink in purple). Playback speed can be altered dramatically with the speed control.
Turn the knob CCW to make it slower, CW for a faster reproduction and half way to return to the original speed.
Speed can also be changed with an external CV, the speed knob will now work as an attenuverter of the applied voltage. Thererec CV outputs have a 8Volts range, use the range knobs to scale them down.

• 6 HP 24 mm deep

Controller CVModulation EnvelopeGenerator FunctionGenerator LFO Looper DualStereo
