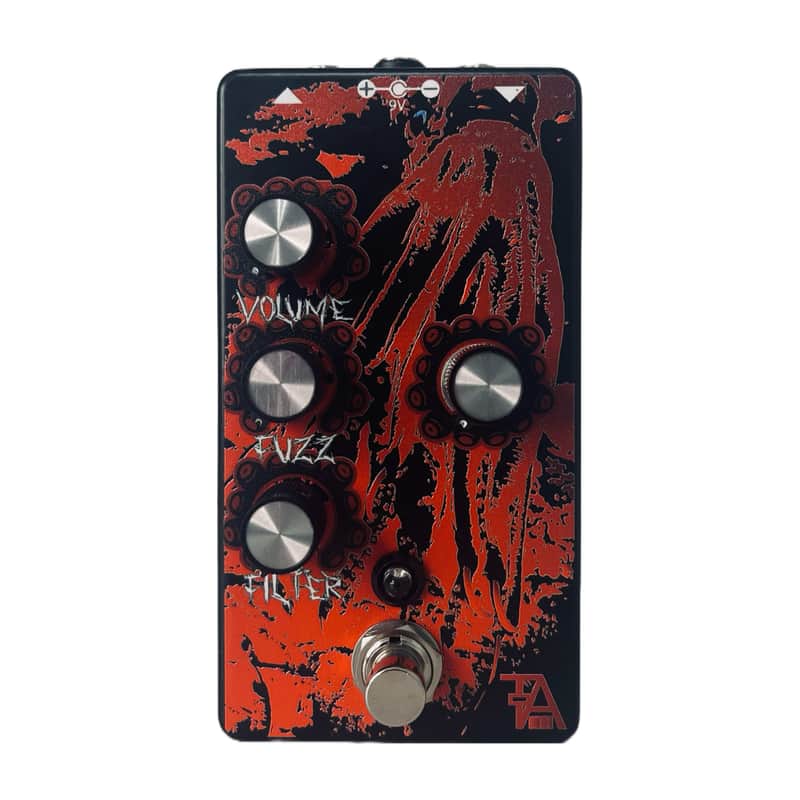

The Vampire Squid is a fuzz pedal that features eight different clipping modes.
The volume knob controls the overall output level. Each mode will have a different output volume due to the nature of clipping. Use this control to dial it back a little, or crank it to hit the front end of your amp harder.
The fuzz knob controls how much distortion is added to your signal.
The rotary switch allows you to select between eight different clipping modes. The modes are: Op Amp, Blue LED, Red LED, Silicon, Mosfet, Asymmetrical, Germanium, and Schottky, going from counterclockwise to clockwise.
The filter control is a lowpass filter with a frequency response from around 500Hz to 30kHz. Turn the knob clockwise to filter high end out of your signal.
Specs
List Price: $179
Current Draw: ≈2.78mA
Dimensions: 5.04 x 2.59 x 2.20 in. (128 x 66 x 56 mm)
Foot Switch: 0.47 in. (12mm)
Power: Standard 9v DC power supply with a 2.1mm negative center barrel. DO NOT RUN AT HIGHER VOLTAGES. Running at higher than 9v can damage the pedal.
| Condition | |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
The Vampire Squid is a fuzz pedal that features eight different clipping modes.
The volume knob controls the overall output level. Each mode will have a different output volume due to the nature of clipping. Use this control to dial it back a little, or crank it to hit the front end of your amp harder.
The fuzz knob controls how much distortion is added to your signal.
The rotary switch allows you to select between eight different clipping modes. The modes are: Op Amp, Blue LED, Red LED, Silicon, Mosfet, Asymmetrical, Germanium, and Schottky, going from counterclockwise to clockwise.
The filter control is a lowpass filter with a frequency response from around 500Hz to 30kHz. Turn the knob clockwise to filter high end out of your signal.
Specs
List Price: $179
Current Draw: ≈2.78mA
Dimensions: 5.04 x 2.59 x 2.20 in. (128 x 66 x 56 mm)
Foot Switch: 0.47 in. (12mm)
Power: Standard 9v DC power supply with a 2.1mm negative center barrel. DO NOT RUN AT HIGHER VOLTAGES. Running at higher than 9v can damage the pedal.
