Boffin FX Guitar LP Treble Bleed Upgrade Board, CTS Pots, Sprague Capacitors

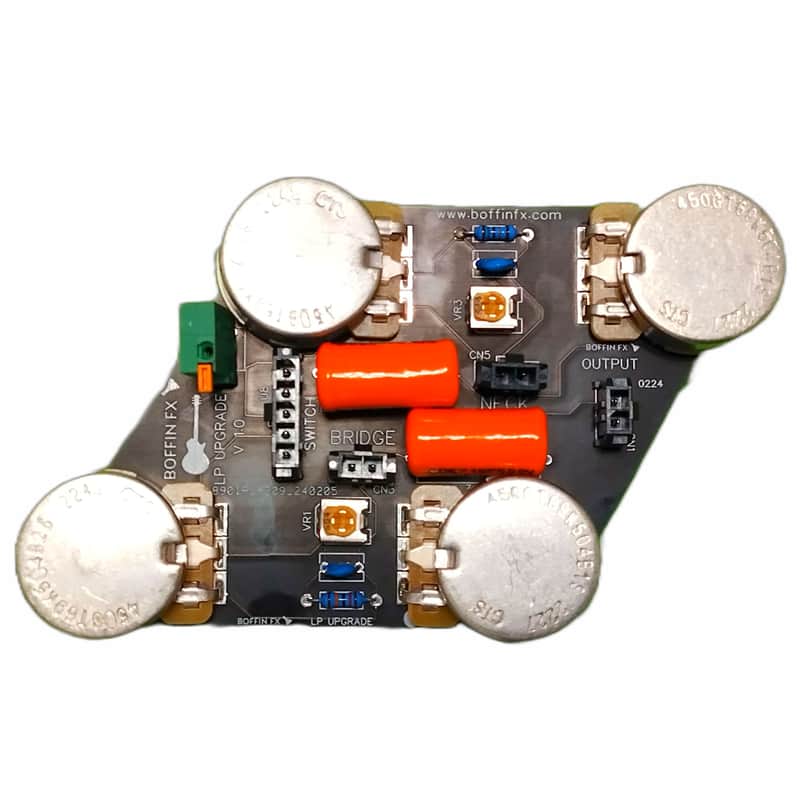

Introducing the Boffin FX LP Treble Bleed Control Board Upgrade. Featuring CTS potentiometers, two adjustable treble bleed circuits, and two Sprague 0.022 uF Orange Drop capacitors for tone adjustment. The upgrade control board is a plug-and-play upgrade for Gibson Les Paul guitars that use Molex connectors. No extra soldering or connectors needed if you are replacing a current control board.

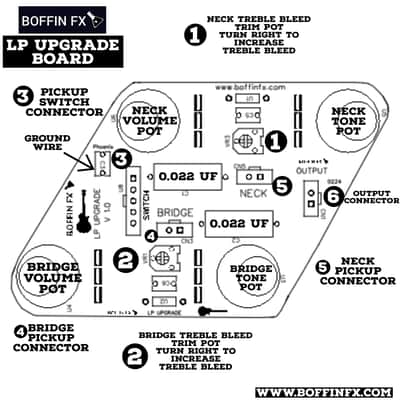

Compatible Molex Connectors:

Selector Switch: Molex Part # 2147502051

Bridge Pickup: Molex Part # 436450200

Neck Pickup: Molex Part # 436450200

Output: Molex Part # 436450200

Compatible with Molex Micro-Fit 3.0 crimp terminal # 430300010

Phoenix Contact connector for ground wire (Green with orange handle).

Treble Bleed Circuits:

Bridge: 1,326 Hz (Compatible with our Blue)

Neck: 1,061 Hz (Compatible with our Green)

Trim pots are turned clockwise to increase treble bleed effect.

CTS Potentiometers:

Volume: 2x 500k Audio Taper, ¾” Shaft

Tone: 2x 500k Linear Taper, ¾” Shaft

Tone Capacitors:

Sprague 0.022 uF “Orange Drop”
