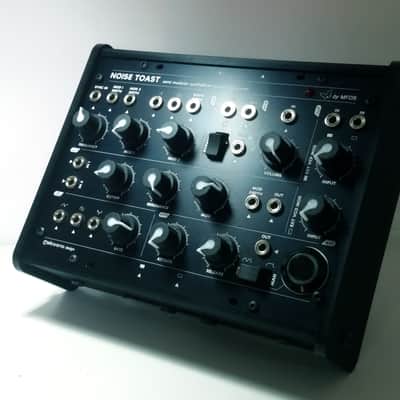

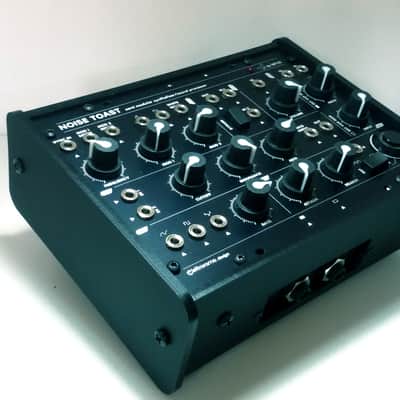

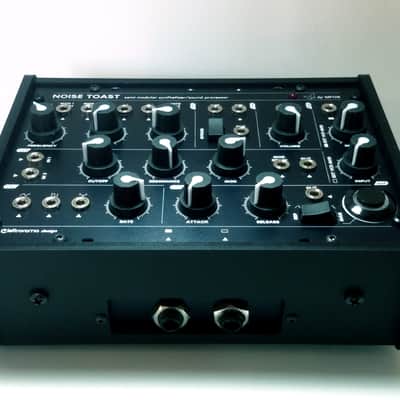

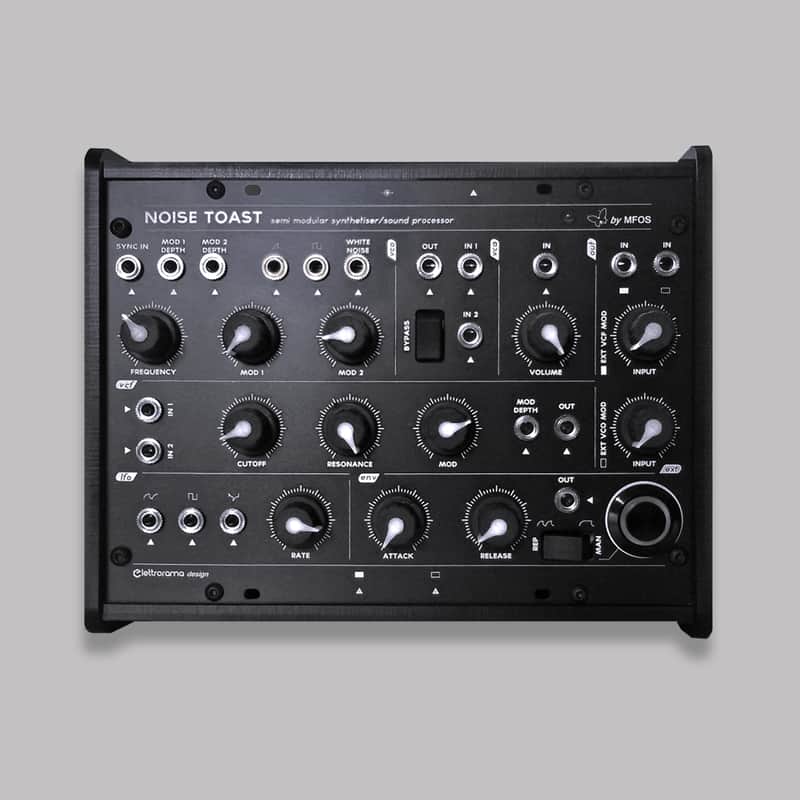

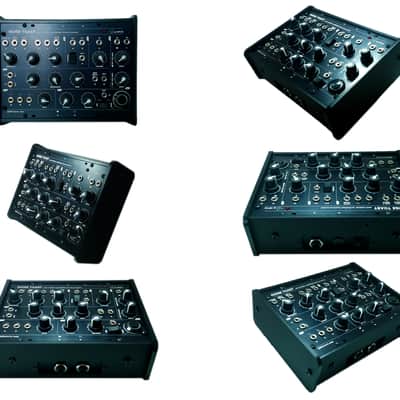

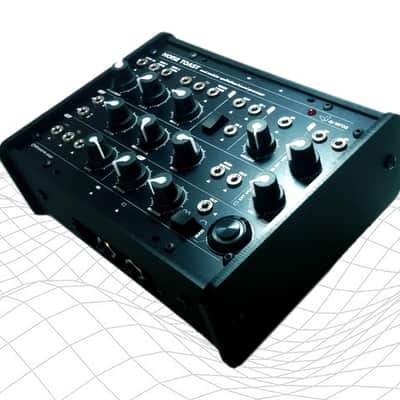

MFOS Noise Toaster semimodular synth & sound processor

Noise Toaster semi-modular sound synthesizer and synthesizer

Included a 220 volt 50 Hz Eu power supply
for other power supplies for other networks please contact us.

Original design by Ray Wilson
Elettrorama version and mod
Approved and licensed by Music From Outer Space

The Noise Toaster Music From Outer Space features a wide range of VCOs, white noise generator, low-pass filter, simple VCA, AR envelope generator with repeat or manual trigger, and an LFO with Square, Integrated Square and Differentiated Square wave. Elettrorama has a modified original design and offers a fully patchable control panel to create sounds by setting the necessary switches, cables. The MFOS NOISE TOASTER circuit consists of seven main components: a voltage controlled oscillator (VCO), a white noise generator, a voltage controlled low pass filter (VCF), a low frequency oscillator (LFO), a generator Simple AR Envelope (AREG), a simple voltage controlled amplifier

Architecture type:
Analog synthesis: Oscillator / s

Oscillators
Oscillators: 1
Waveforms: Saw Up, Square, White Noise
Osc Modulation: Envelope, Knob, LFO
Oscillator Notes: full patchable modultion matrix

Envelopes
Envelopes: 1
Envelopes parameters: Attack, Decay, Looping, Triggered

Filters
Filters: 1
Types: 24dB Slope (4-pole), Low Pass, Resonance
Filter Modulation: Envelope, Knob, LFO

LFO
LFO: 1
LFO parameters: Triangle
LFO notes: + 2 Differentiated Square waves

Polyphony & Tuning
Polyphony: 1
Timbrality: 1
Tuning: Atonal
Modes: Mono

case
Case: Desktop

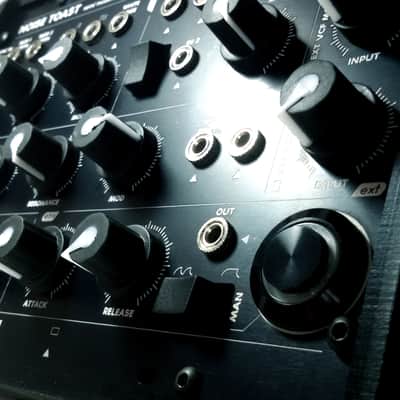

Controls: Knobs, Switches. 3.5 mono jeck input
Dimension: 20 x 15 x 6.5 (cm)
Material: Plexiglass
Front panel: Aluminum (1mm thick)

Connections
Audio Output Connections: 1/4 "Phone Jack, Mono Out, 3.5 Phono jack, Mono Out
Audio Output Count: 2

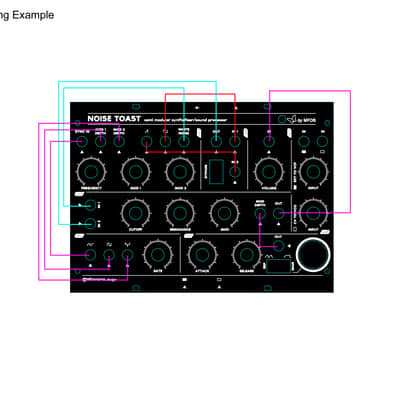

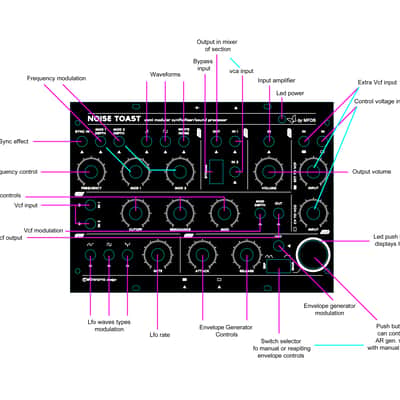

Source of patchable connections:
Sync IN: 1
Mixer IN: 2
VCA IN: 1
VCF IN: 3
VCF OUT: 1
Mixer OUT: 1
Mod OUT: 2
VCF MOD: 1
LFO MOD: 3 Triangle + 2 Differentiated Square waves
Envelope MOD: 1
Waveform OUT: 3 Sawtooth, Square, Whit Noise
Control voltage: 1 (0-9 volts) NOT BE 1V / Oct
Power: 9V power supply 300 mA (euro)

Design Notes:
original design of the
version and mod by Ray Wilson Elettrorama
Approved and licensed by Music From Outer Space
