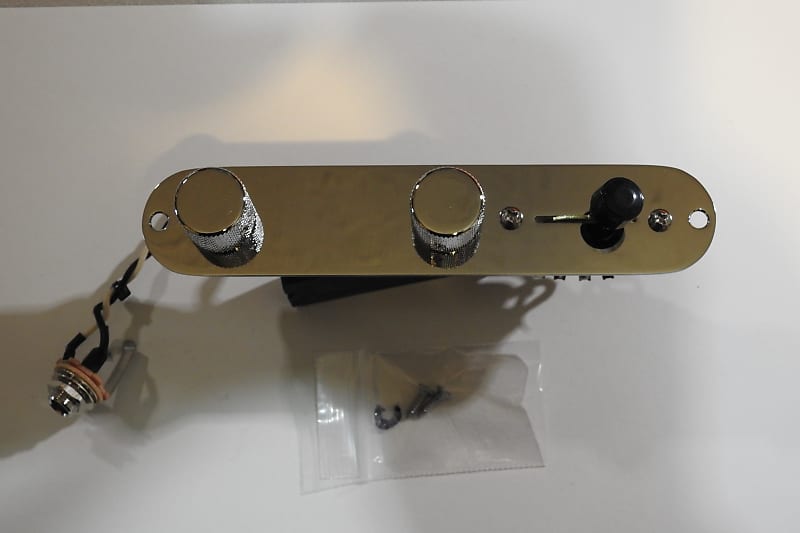

Telecaster Loaded Pre Wired 4 Way Chrome Control Plate With Kluson Chrome Control Plate, Gotoh Chrome Barrel Knobs, Oak Grigsby 4 Way Switch, Mojotone Dijon .047uF Tone Cap, CTS Pot, Switchcraft Jack, and Gavitt Cloth Wire!


This is a quality built prewired soldered Telecaster control plate and wiring harness. We start with a Kluson Control plate, Allparts Gotoh Chrome Barrel knobs , Mojotone CTS Series Audio full size (24mm) volume pots, Mojotone Dijon tone capacitor, CRL 5 Way blade switch with either a top hat or button switch tip and a Pure Tone jack.

We use Kluson control plates because it is a replacement for vintage or contemporary Telecaster guitars. Features correct control hole spacing, non-countersunk holes, and a special feature unique to Kluson - the switch slot is slightly longer which enables the installation of the 4 position switch without hitting the plate or modifying the slot length. Vintage correct 3/64 thickness.

We can do this configuration in Nickel. This Control Plate can also be done with dome knobs. Just send us a PM. If you prefer a different cap or cap size, just let us know.

For this 4 way to work correctly your neck pickup has to be modified with the cover ground being soldered to a separate lead (3 wire). There are several YouTube videos showing you how to do this (see video with the pictures). If you do not want to do this yourself you can send the pickup to us to modify (10.00 up charge) and we will send it back with the control plate.

Note:  Please let us know right after purchase which switch knob (round or top hat) you want. If you do not let us know we will ship it with a top hat switch knob.

We wire these control plates as they are ordered so it might take a day or 2 before shipping.

We can add a treble bleed to this control plate for an additional cost, just send us a PM to let us know if you prefer an adjustable or fixed treble bleed.

Need a solderless control plate? We can do that too, just let us know! We use screw or push down connectors so you do not have to do any soldering for pickups or grounds. This is a great option for someone that swaps pickups all the time.

We have other Tele parts in stock if you want us to put together a kit. We have bridges, tuners, string trees, ferrules, and neck plates.

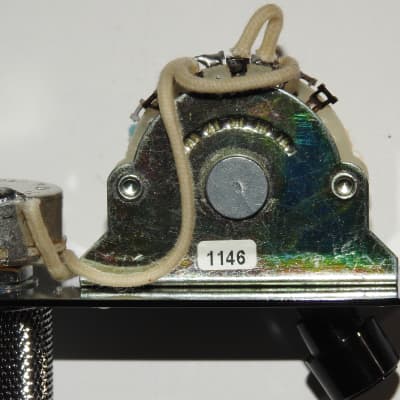

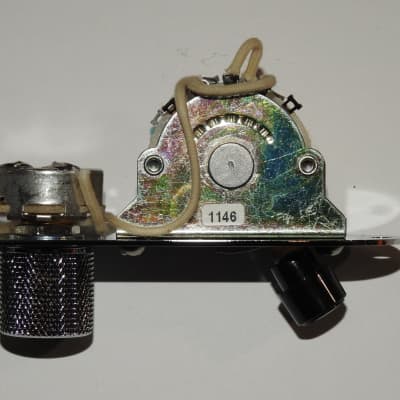

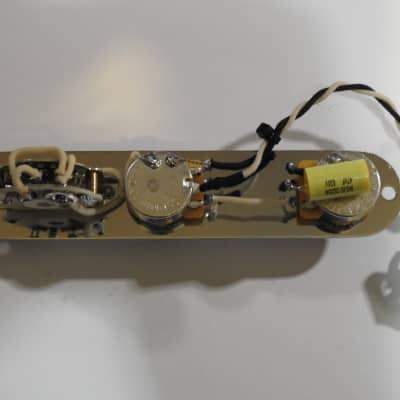

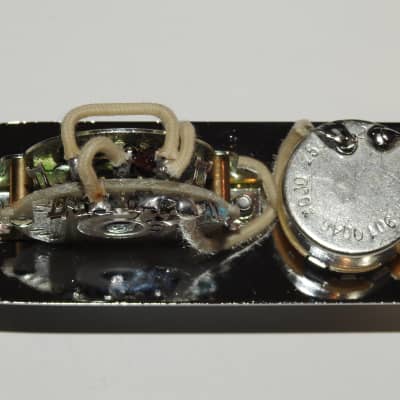

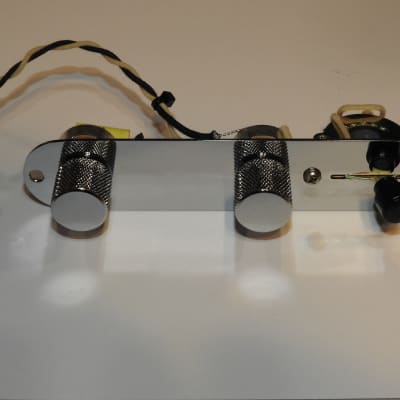

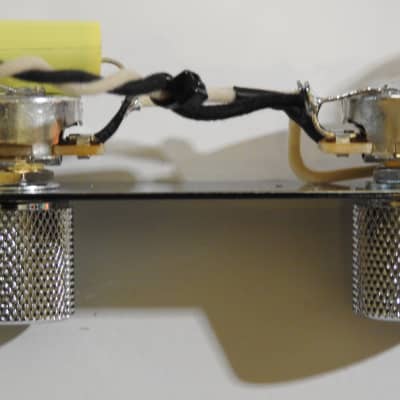

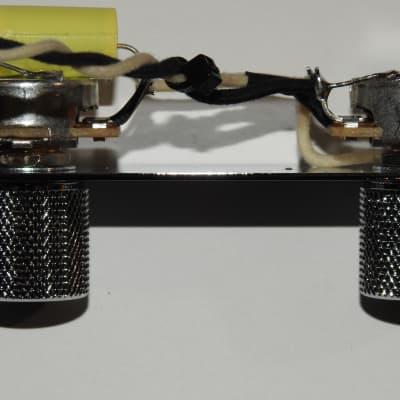

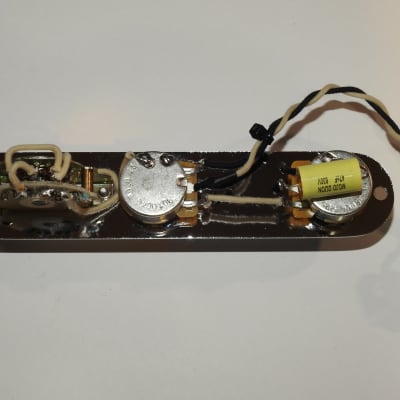

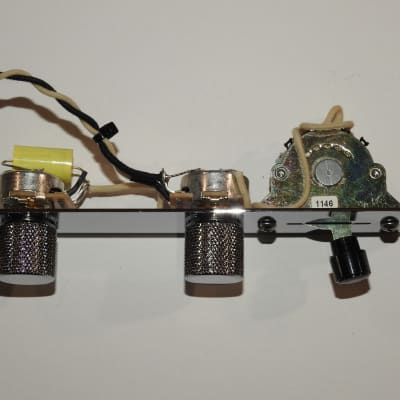

Note: There are several ways to wire a 4 way control plate. The one in the pictures is wired Bridge, Series, Parallel, Neck or BSPN. If you prefer we can wire it BPNS, BPSN or SBPN. If you have a different 4 way you prefer, send us the wiring diagram.


Switch Positions:

  • Bridge
  • Series
  • Parallel
  • Neck

Specs:

  • Kluson Nickel Control Plate, Mounting Screws Included
  • Gotoh Nickel Plated Domed Knobs
  • Round or Top Hat Switch Knob (Message after purchase to let me know which one you want)

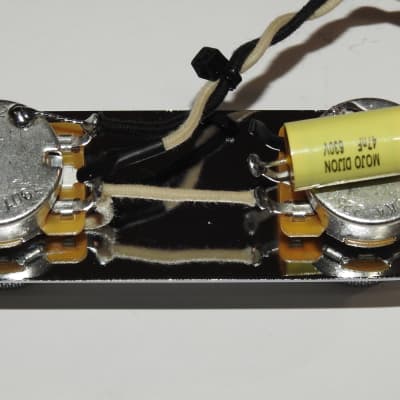

  • Mojotone CTS 250K Full Size Audio Pot, CTS Audio 250K Push/Pull Tone Pot
  • CRL 5 Way Switch

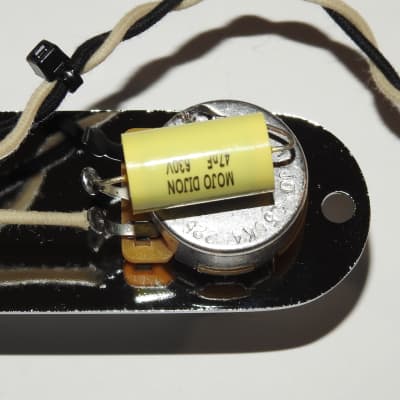

  • Russian PIO .047uF Tone Capacitor (We have several different brands and size caps)

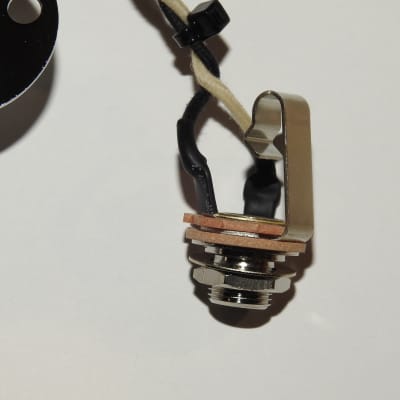

  • Pure Tone Output Jack
  • Gavitt Pre-Tinned Vintage Cloth Wire (If you need extra wire we can add it for .70 cents a foot)

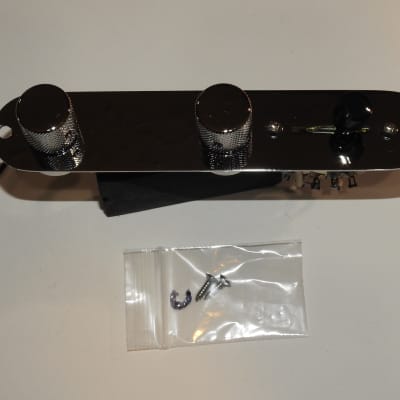

  • Mounting Screws Included

All wiring harnesses are bench checked before packing them up.

Please Note: When you receive this wiring harness, please examine it before doing and work on it. If you have any concerns please get in touch with us. We will not except any returns once it has been modified in any form.

Take a look at all the pictures and ask all questions before buying. This part will be packaged securely before shipping.

*** INTERNATIONAL SHOPPERS, PLEASE MESSAGE ME FOR A SHIPPING QUOTE ***
