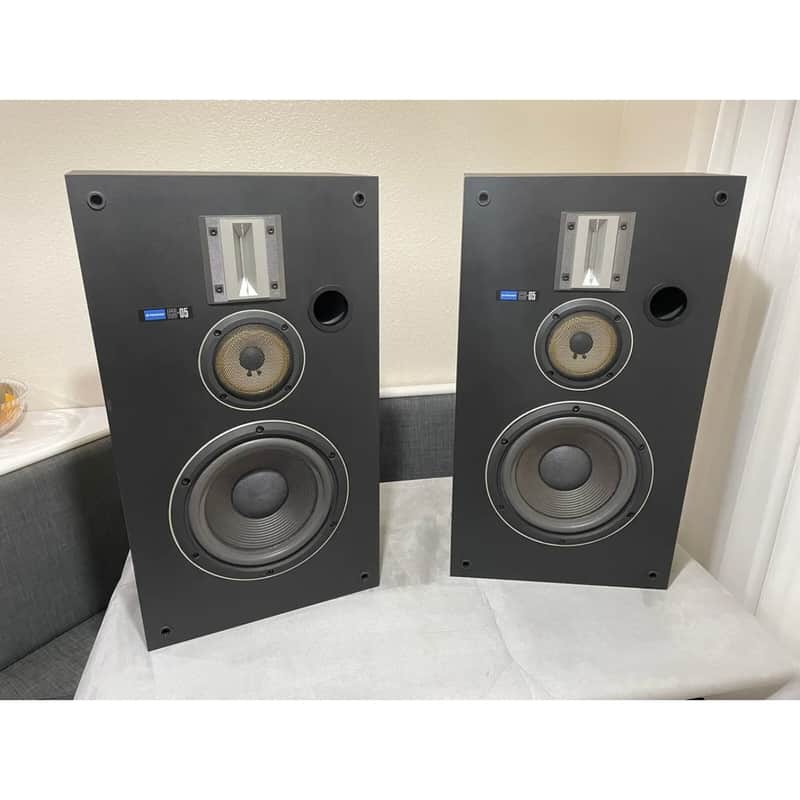

Rare Vintage Pioneer CS-05 3 Way Speakers (1982) Japan Only W/ Ribbon Tweeters. Woofer surrounds just installed. These are excellent sounding speakers. The speaker cabinets are heavy and sturdy with internal bracing. The midrange has its own separate enclosure and the crossover incorporates self resetting protection circuitry for tweeter and midrange protection. The cabinets are in good condition with only a few small imperfections (see photos).

These speakers were part of the Studio Boy Project S101 that was basically a home studio type rack system that was only sold in Japan and for a hefty price.

Manufacturer: Pioneer

Model: CS-05 (1982)

Type: Speaker

Years of construction: 1982 - 1984

Dimensions (WxHxD): 350 x 808 x 338 mm

Weight: 16 kg

Technical data

Design: 3-way, 3 speakers, bass reflex

Chassis:

Woofer: 250 mm cone

Midrange driver: 120 mm cone

Tweeter: 66 mm cone

Load capacity (adjustable/music b.): 35W / 100W

Efficiency: 90 dB/W/m

Frequency response: 40 - 20,000 Hz

Transition ranges: 2,500 Hz, 4,000 Hz

Impedance: 8 ohms
