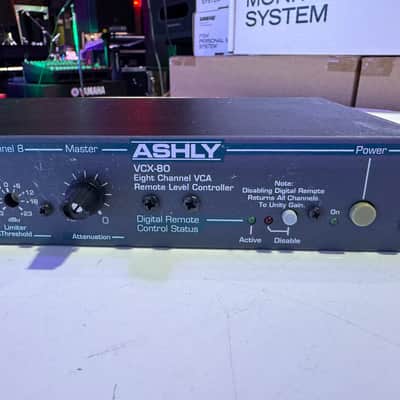

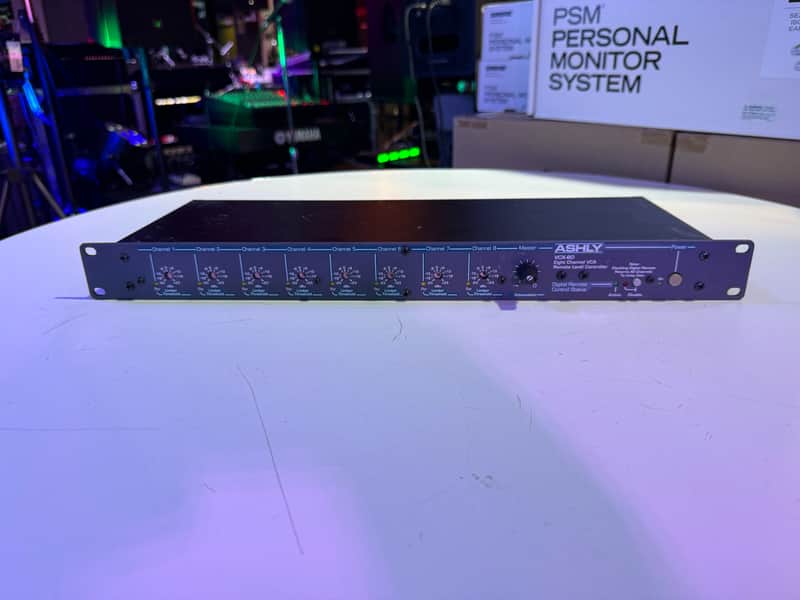

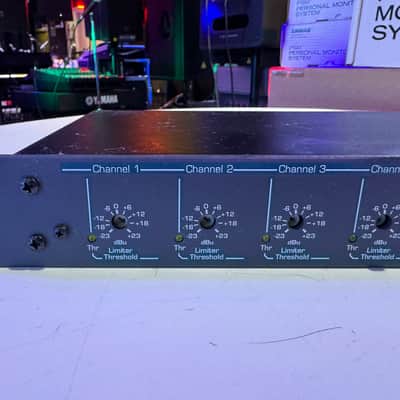

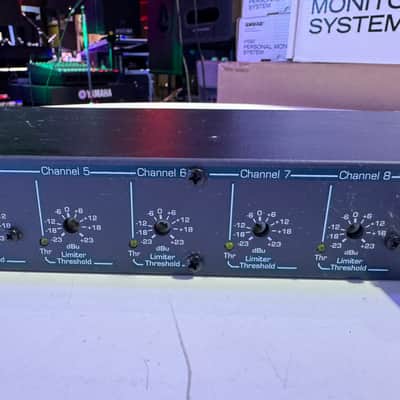

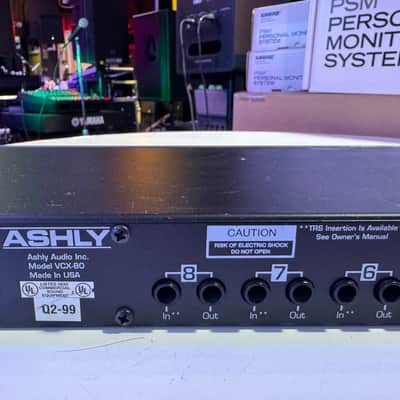

The Ashly VCX-80 contains eight fully-independent VCA channels in a single unit capable of limiting, remote level control, and mixing . By itself, the VCX-80 functions as a precise eight-channel limiter with recessed threshold adjust- ments on each channel . When connected to the Ashly RD-8 Remote Controller, DC control, or even computer control, the VCX-80 can control individual channel and master levels with a range of +20dB to -75dB . Each VCA channel comes con- figured with separate input and output jacks for patching into line-level signal paths, and can be reconfigured to use single jack TRS insertion for easily patching into mixing consoles .

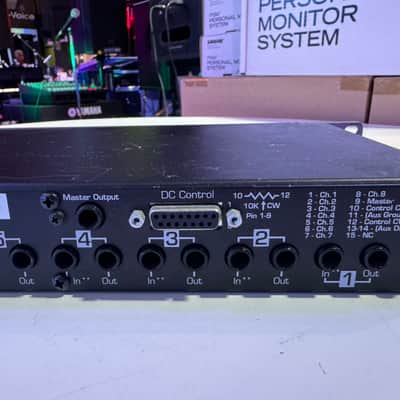

The VCX-80 has a master output jack providing a summed output of all eight channels, allowing the unit to function as a fully-contained eight-channel remote controlled line level mixer . DC control of channel and master level uses a simple potentiometer circuit connected to a dedicated connector on the rear of the unit .

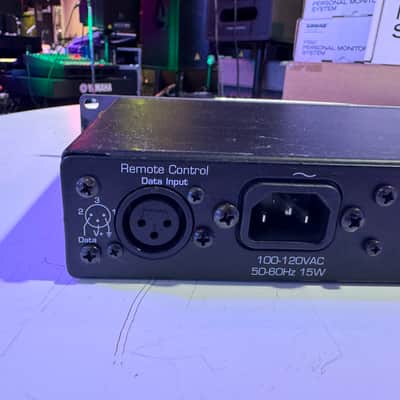

A standard IEC-320 AC inlet is provided on the rear panel of the VCX-80 to accept the detachable power cord shipped with the unit.

We have a digital version of the owner's manual that we will email to the buyer.

Original Sound Post is a second generation, family owned and operated Music Store outside of Chattanooga, TN in Rossville, GA, in business since 1977.  We have an in-house service center.  Everything that we sell on Reverb comes with a 30-day store warranty.   If you are in the area, local pickup is available to avoid shipping cost.
