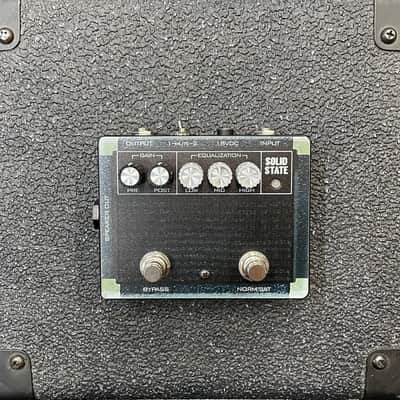

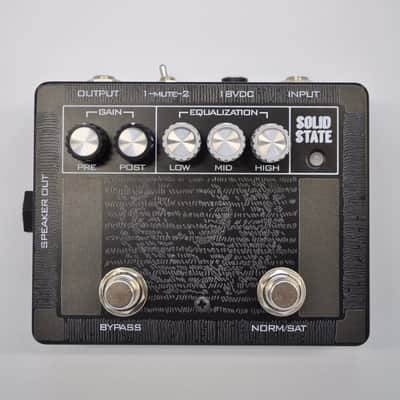

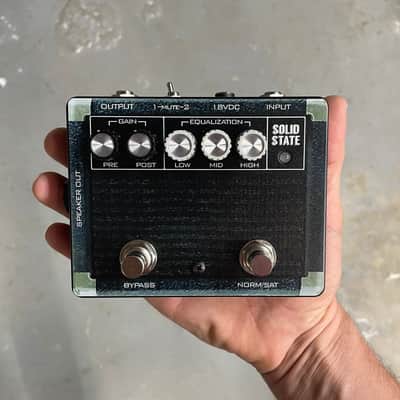

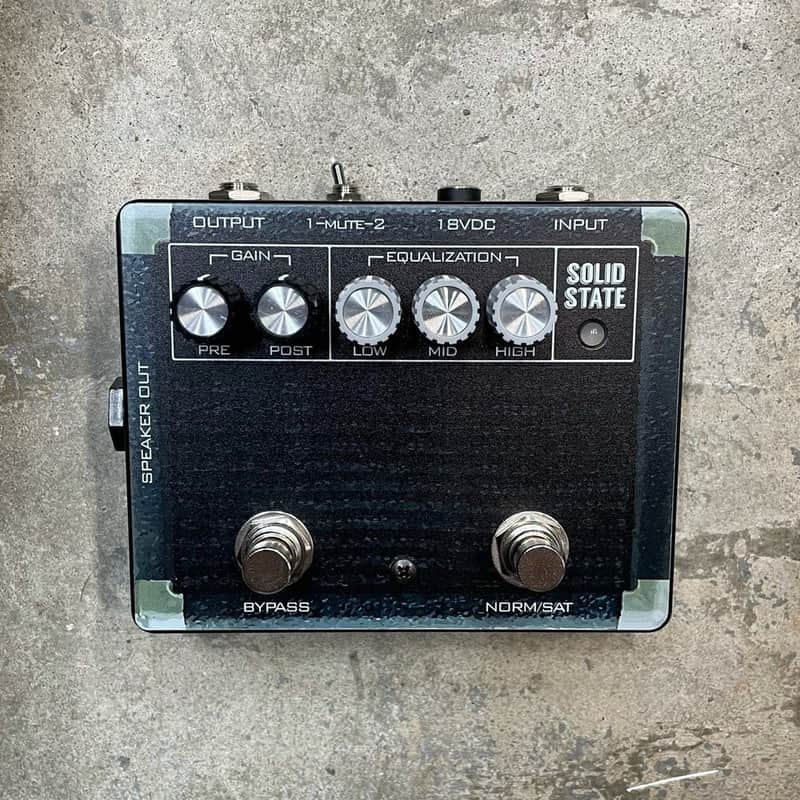

Acorn Amplifiers Solid State

In a 2021 interview, a relatively overlooked low-wattage practice amp was revealed to be a studio secret weapon for achieving wiry and aggressive tones for guitar, bass, and even drums and vocals. The latest innovation from Acorn Amplifiers, the Solid State, is a full circuit recreation of that now-mythic amp packed into a pedal enclosure and loaded with features.  This is not just a preamp in a pedal box. The Acorn Amps Solid State incorporates the TDA series class-AB power amp device that was utilized in the original amp design, giving you the most authentic reproduction available in a modern pedal format. From spanky, bright cleans to ultra-gain breakup, the Acorn Solid State is a complete guitar amp that fits on your pedalboard in a standard 1590BB enclosure. Two separate output jacks allow the Solid State to be used as either a preamp in your pedal chain or as a standalone 10 watt amplifier plugged directly to a speaker cab; they can even be used together at the same time. Additionally, a toggle switch lets you select between sending the signal out before or after the power amp circuit for maximum tonal versatility.

Features include:

• Full 10 watt solid-state guitar amp circuitry (preamp and power amp)

• Low, Mid, & High controls to dial in your tonal frequency

• Two separate output jacks to use with a speaker cab or normal pedalboard wiring or both together at once

• Two footswitchable tone modes - Normal and Saturation

• Toggle switch to send the signal out from two different points on the circuit path as well as a mute switch for quick studio tracking

• Bi-color LED indicator that lights up green in Normal mode and red in Saturation mode

• True bypass & powered by 18VDC pedal power

• Current draw with 18V power supply: <50mA when only output jack is used. ~500mA when the speaker jack is used with 8 or 16 ohm speaker cabinet. ~900mA when the speaker jack is used with a 4 ohm cabinet.

• Current draw with 9V power supply: 50mA when only output jack is used. ~250mA when the speaker jack is used with 8 or 16 ohm speaker cabinet. ~400mA when the speaker jack is used with a 4 ohm cabinet.
