Listing is for a single NEW Frequency Central Gnatophilidae Oxfordii in brand new condition for the following piece(s) of equipment: Eurorack Modular. Madisynths is an official Frequency Central dealer. We stand behind these fantastic modules as long time users, with about half of our personal racks consisting of FC synth gear!
Stock Update:
In stock and ready for same day shipping!
About the Frequency Central Gnatophilidae Oxfordii:

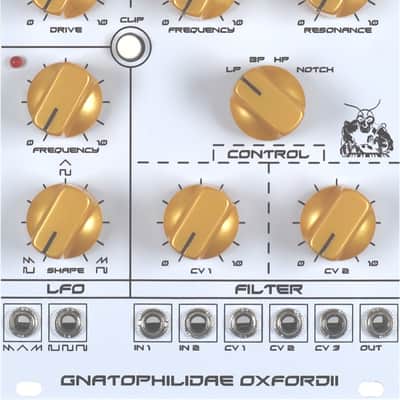

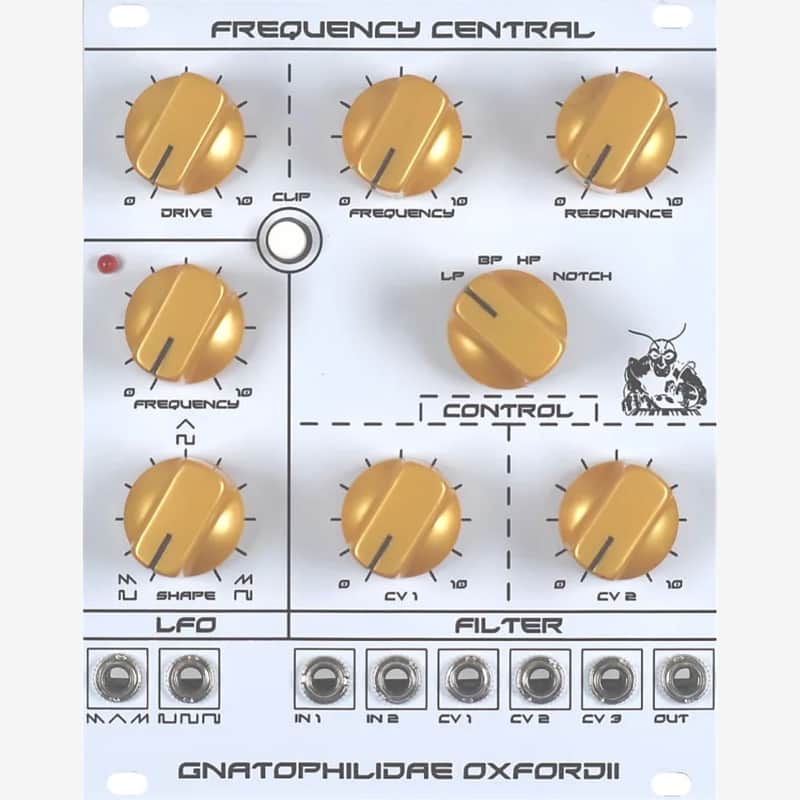

If EDP had produced Eurorack modules, they would have been quirky, garish and killer. This is my homage. An expanded Gnat VCF with Lowpass, Bandpass, Highpass and Notch Reject responses as well as Drive and Clip options. The LFO is based on the ‘Enhance LFO’ from the Gnat, again its been expanded with multiple waveshape options. Yes, at 20HP it is twice as wide as it needs to be – you do you.
In September 2023 I was lucky enough to acquire an EDP Gnat synthesiser after questing for one for many years. I’m already the owner of an EDP Wasp, and had always wondered about the Gnat, which is a smaller version of the Wasp in many ways, but with a character all of it’s own. After decades lying unloved in an attic for decades, my Gnat required a little love to get it in full working order, so I set to work on it, after looking up the schematic. The Gnat came to life, and we fell deeply in love with each other.
There have been a few remakes of the Wasp VCF, but never one of the Gnat to my knowledge, so with an original on hand I set out to remedy this sorry situation. The original is strictly lowpass, but it’s easy enough to add bandpass, highpass and notch reject – so that’s what I did. The Gnat VCF uses 3 gates from a CD4049, leaving 3 unused gates, so I used them to create an LFO based on the enhance LFO of the Gnat, which was used exclusively for a fixed rate PWM of the Gnat’s DCO. The LFO is expanded to offer multiple waveforms.
The Gnat was 9V battery powered, to get close to this in Eurorack I’ve given Gnatiphilidae Oxfordii it’s own onboard +/-5V power rails. This helps keep it’s character close to the original. Gnatophildae Oxfordii is big and garish, a little whacky and a little leftfield. That’s it’s joy.
Product specifications:
Shipping notes:
FAST SHIPPING IS OUR STANDARD SERVICE, WITH SAME DAY SHIPPING & DROP OFF, AND TWO-DAY SHIPPING IS AVAILABLE AS AN UPGRADE ON MOST SHIPPING PROFILES! Saturday afternoon & Sunday sales will be taken to the shipper early on Monday mornings. If you are in the Madison, WI area, a showing can be arranged, and free local pickup is available. In-person cash payment can be arranged to avoid the payment processing fees, but not the Reverb seller fees (those will be reported and the 5% paid to Reverb).
DUE TO RECENT CHANGES IN REVERB SHIPPING OPTIONS, COMBINED SHIPPING MAY NOT AUTOMATICALLY BE AVAILABLE. IF NOT, PLEASE MESSAGE US, AND ADJUSTMENTS CAN BE MADE ON ORDERS WITH MULTIPLE ITEMS.
For all small and some medium items, the item will be bubble wrapped and well secured in a strong box. For some medium items (sizable drum machines, table top synths) and all large items (keyboards and rack mount devices), item will be double-wrapped and double boxed.
NOTE: We will combine shipping for parts and small items, and often have more in-stock than what is listed (especially replacement keys). Please message us your requirements for multiple parts needed (where multiple items are available, but only one can be purchased at a time), and we will adjust shipping and/or bulk discounts accordingly.
Madisynths stands by the items that we sell with Reverb's standard used/vintage gear return policy (within 7 days of delivery) as well as the standard new gear return policy (within 14 days of delivery, excluding parts that have been soldered or are otherwise no longer new). Shipping charges to (including actual charges for free shipping items) and from will be deducted from refund on all returns. Very few specific listings have been designated “as described with no returns, mostly items noted as “for parts” or “non-functioning.“
Listing is for a single NEW Frequency Central Gnatophilidae Oxfordii in brand new condition for the following piece(s) of equipment: Eurorack Modular. Madisynths is an official Frequency Central dealer. We stand behind these fantastic modules as long time users, with about half of our personal racks consisting of FC synth gear!
Stock Update:
In stock and ready for same day shipping!
About the Frequency Central Gnatophilidae Oxfordii:
If EDP had produced Eurorack modules, they would have been quirky, garish and killer. This is my homage. An expanded Gnat VCF with Lowpass, Bandpass, Highpass and Notch Reject responses as well as Drive and Clip options. The LFO is based on the ‘Enhance LFO’ from the Gnat, again its been expanded with multiple waveshape options. Yes, at 20HP it is twice as wide as it needs to be – you do you.
In September 2023 I was lucky enough to acquire an EDP Gnat synthesiser after questing for one for many years. I’m already the owner of an EDP Wasp, and had always wondered about the Gnat, which is a smaller version of the Wasp in many ways, but with a character all of it’s own. After decades lying unloved in an attic for decades, my Gnat required a little love to get it in full working order, so I set to work on it, after looking up the schematic. The Gnat came to life, and we fell deeply in love with each other.
There have been a few remakes of the Wasp VCF, but never one of the Gnat to my knowledge, so with an original on hand I set out to remedy this sorry situation. The original is strictly lowpass, but it’s easy enough to add bandpass, highpass and notch reject – so that’s what I did. The Gnat VCF uses 3 gates from a CD4049, leaving 3 unused gates, so I used them to create an LFO based on the enhance LFO of the Gnat, which was used exclusively for a fixed rate PWM of the Gnat’s DCO. The LFO is expanded to offer multiple waveforms.
The Gnat was 9V battery powered, to get close to this in Eurorack I’ve given Gnatiphilidae Oxfordii it’s own onboard +/-5V power rails. This helps keep it’s character close to the original. Gnatophildae Oxfordii is big and garish, a little whacky and a little leftfield. That’s it’s joy.
Product specifications:
- Depth 35 mm
- Width 20 HP
- +12V draw 36 mA
- -12V draw 36 mA
- +5V draw 0 mA
