Dwyfor Tech Pas-Isel - Eurorack Lowpass Filter VCF - PCB & PANEL SET

USA buyers: Tariffs are included in shipping cost.

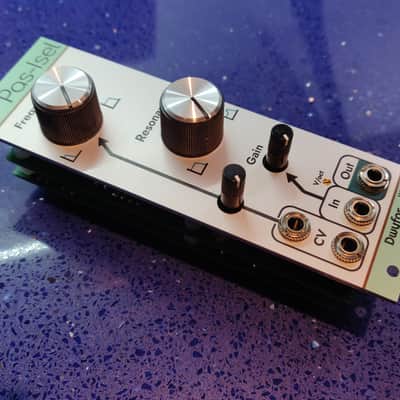

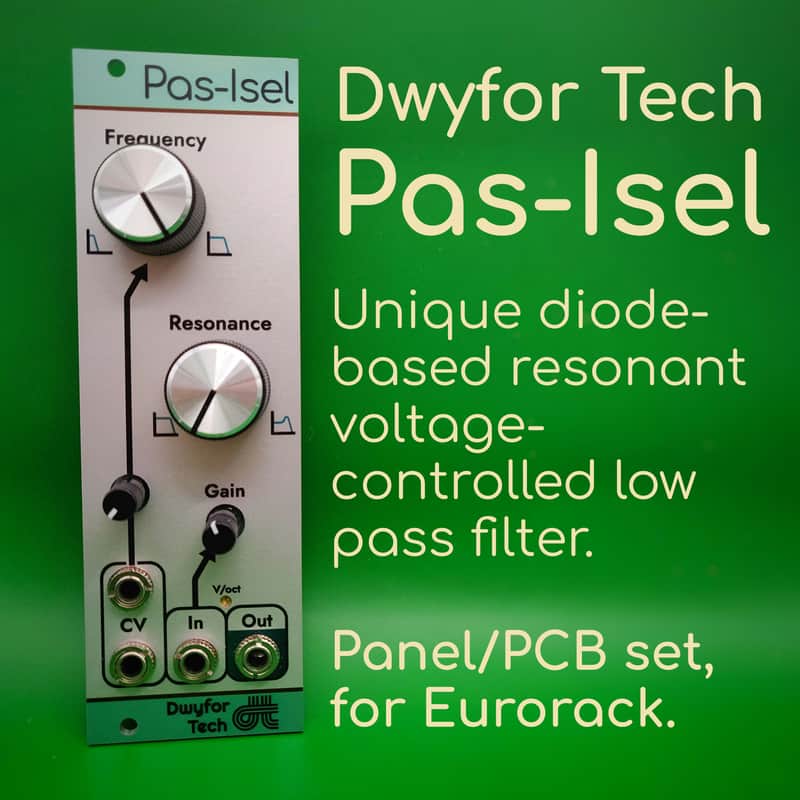

Pas-Isel is a four-pole lowpass filter for Eurorack modular systems, with an architecture unlike any other. Combining design elements from Buchla and Korg, this diode-based VCF uses highpass filters in op-amp negative feedback loops to generate its signature 'wooly jumper' -24dB lowpass response.

Pas-Isel is entirely realised with through-hole components for ease of assembly. This listing is for the panel and PCB set only. All our front panels are high-quality anodised CMYK prints on chunky, quality brushed aluminium sheet stock, made in the UK. We also offer a complete DIY kit, if you'd rather us provide you with all needed components, in a separate listing.

• 8hp wide, 3U high.
• Conforms to Eurorack (Doepfer A-100) standards.
• 33mm depth required for mounting.
• Idle power consumption 25mA on both rails.
• 25kHz self-oscillation power consumption 45mA on both rails.

You can find the build/user manual at tinyurl.com/pasisel - We highly recommend giving it a read before buying, to make sure it's the right kit for you.

If you don't see your shipping region, ask for a quote!
