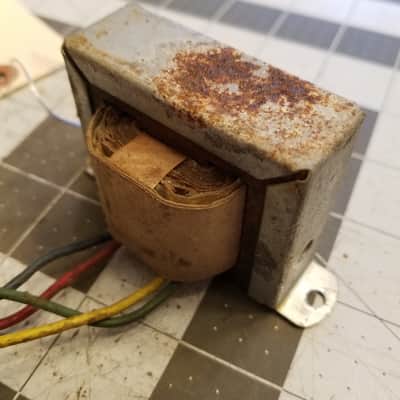

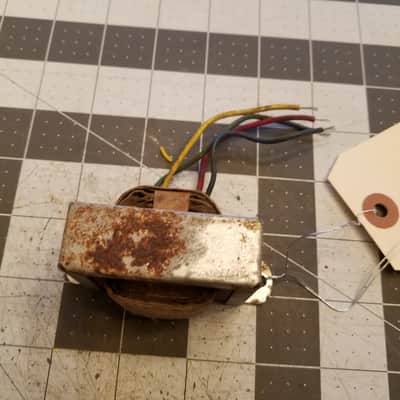

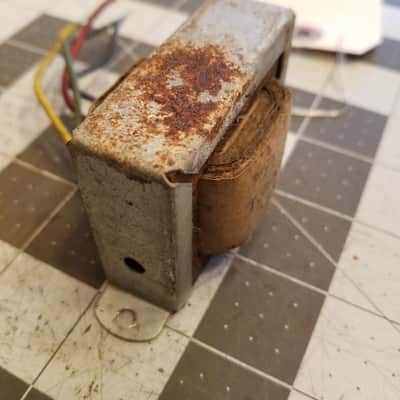

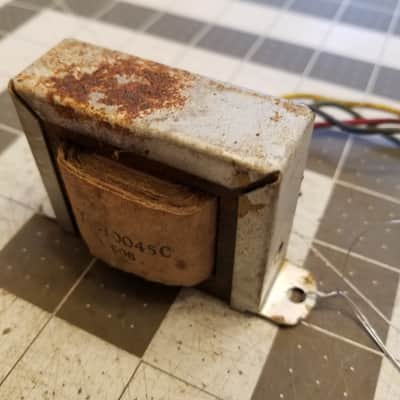

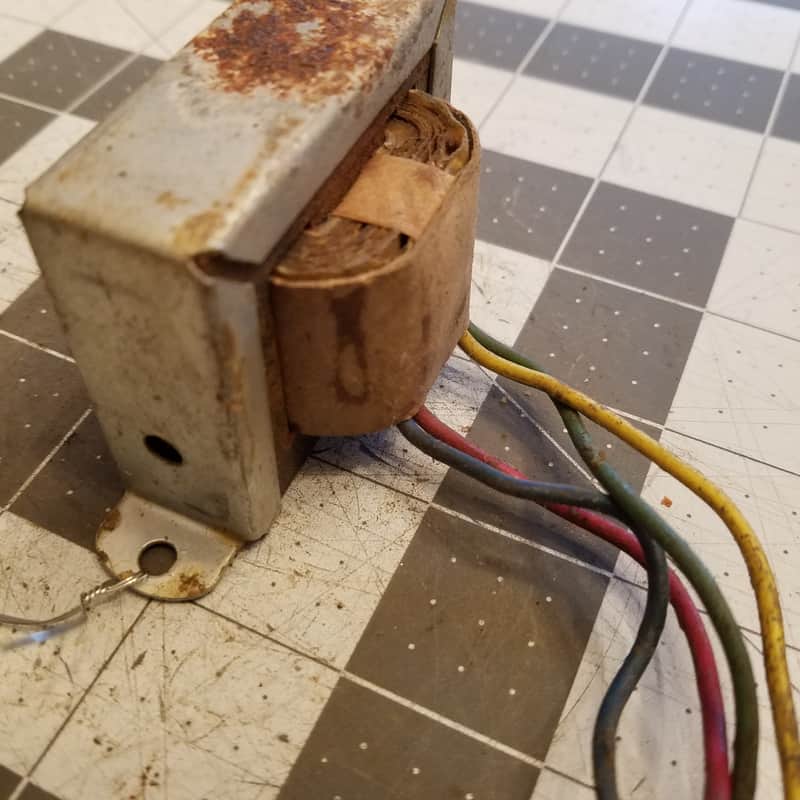

Woodward Schumacher 90:1 [700 Ohms] TO-10045C Vintage Output Transformer OT Tested Tube Amp Audio
Price$80
+ $18 Shipping
$5.40 shipping when combined
Listed:2 years ago
Views:177
Saves:0
Offers:0
Saint Louis, MO, United States
Our users rate Reverb

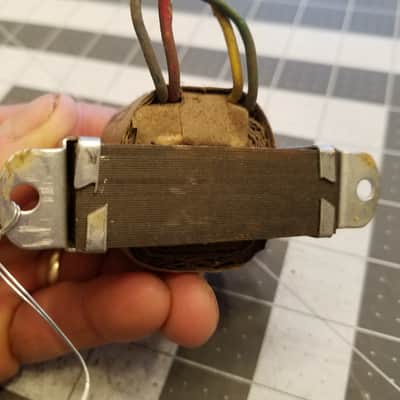

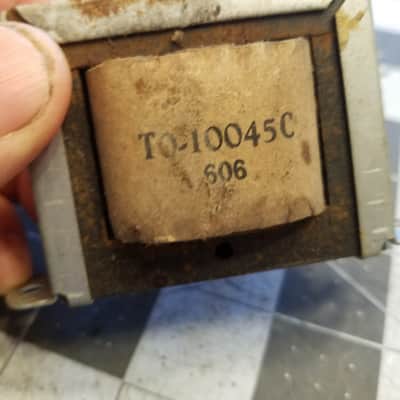

One (1) fully 1.00 kHz AC tested and guaranteed vintage tube amp output transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in by Woodward-Schumacher. IEA date code 606. Weighs 1 lbs 15 oz. Center-to-center bolt spacing is 73 mm, and height of casing is 49 mm. Quantity sometimes available - please enquire.

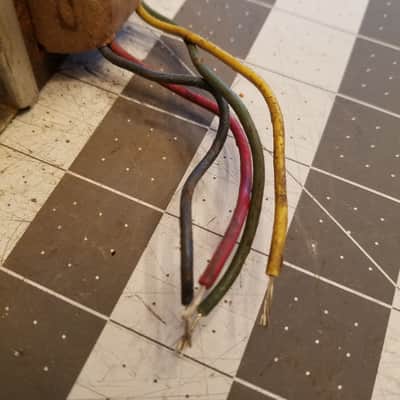

Using a 10V_pp, 1.00 kHz input to the primary coil, we have verified these connections for this vintage transformer:
The turns ratio (pri:sec) is 10:1, leading to an impedance ratio for the main secondary coil of 90:1. This winding of the transformer would provide a 700 ohm load resistance to the tube plate if you hook it to an 8 ohm speaker.
Serial number O-1030.
