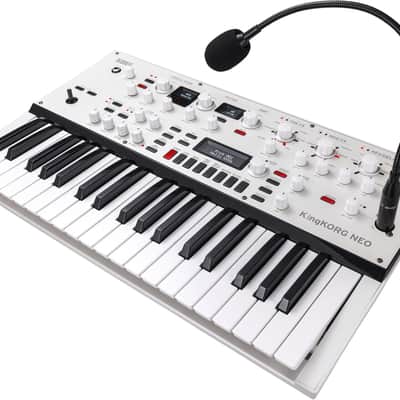

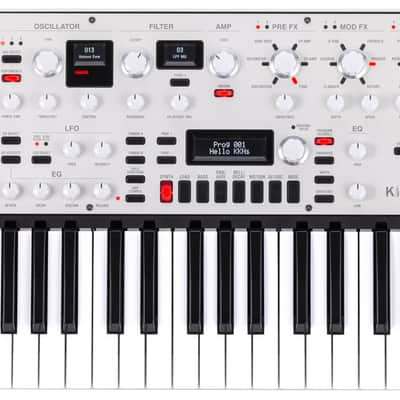

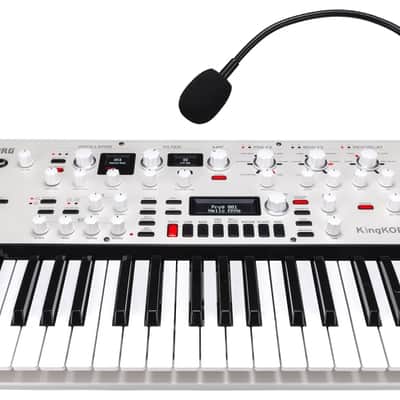

KingKORG, the acclaimed and powerful Virtual Analog synth, is back in a compact 37 full-size key model with fresh new sounds, a great vocoder, and a refreshed look. The KingKORG NEO combines a classic analog-like synth layout with swift, intuitive editing — offering an unmatched level of depth and flexibility for today's musician.

Powerful XMT Sound Engine

KingKORG NEO features Korg's XMT (eXpanded Modelling Technology) virtual analog sound engine. Pre-set oscillator algorithms let you quickly shape rich, stage-ready tones without laborious manual adjustments. Choose from 138 oscillator types across analog, noise, DWGS, PCM, and MIC IN categories — from classic sawtooth and square waves to complex noise and PCM textures.

Iconic Modelled Filters

18 filter types across LPF, HPF, and BPF — including models inspired by iconic '70s monophonic synths, '80s polyphonic synths, and Korg's own MS-20. Filters self-oscillate at high resonance for classic analog character and extreme sonic textures.

16-Band Vocoder

A balanced XLR mic input on the front panel and an included high-quality microphone let you dive into vocoding instantly. The 16-band vocoder rivals dedicated vocoder machines, with formant shift, formant hold, and per-band level/pan control. Timbre B can be used as a modulator in place of the mic input for seamless synth/voice blending.

300 Preset Programs

200 preset + 100 user programs across 8 categories (SYNTH, LEAD, BASS, and more) — all stage-ready and crafted for the modern music maker.

Masterful Effects

Three master effect slots plus a 2-band EQ:

- PRE FX: Distortion, Decimator, Ring Mod, GT.Amp, EP.Amp, Tone

- MOD FX: Flanger, Chorus, U-Vibe, Tremolo, Phaser, Rotary

- REV/DELAY: Hall, Room, Plate, Tape Echo, Mod Delay, BPM Delay

Arpeggiator

Up to 8 steps, 6 types: Up, Down, Alt1, Alt2, Random, Trigger.

Specifications

Keyboard: 37 full-size keys, velocity and release-velocity sensitive

Sound Engine: XMT (eXpanded Modelling Technology)

Polyphony: 24 voices | Timbres: 2 (Layer/Split)

Oscillators: 3 per timbre — 138 types (32 analog/noise, 40 DWGS, 65 PCM, 1 MIC IN)

Filter: 1 per timbre — 18 types (7 LPF, 5 HPF, 6 BPF)

Modulation: 2x EG, 2x LFO, 6 virtual patches

Vocoder: 16-band, formant shift & hold

Programs: 300 (200 preset / 100 user), 8 categories

Display: 16x2 character OLED (main) + 128x64 OLED (Oscillator/Filter)

Audio I/O: XLR balanced mic input (+5 dBu), L/MONO + R 1/4" TS outputs (unbalanced), 1/4" stereo headphone output

Pedal: Damper, Switch/Pedal inputs

MIDI: DIN IN/OUT | USB: USB-B

Power: DC 12V AC adapter (included), 9W

Dimensions: 565 x 338 x 92 mm / 22.24" x 13.31" x 3.62"

Weight: 3.1 kg / 6.83 lbs

Included: AC Adapter, Vocoder mic with windscreen

Optional Accessories: XVP-20 Expression/Volume Pedal, EXP-2 Foot Controller, DS-1H Damper Pedal, PS-1/PS-3 Pedal Switch

* All product, company, and standard names are trademarks or registered trademarks of their respective holders. Appearance and specifications subject to change without notice.
